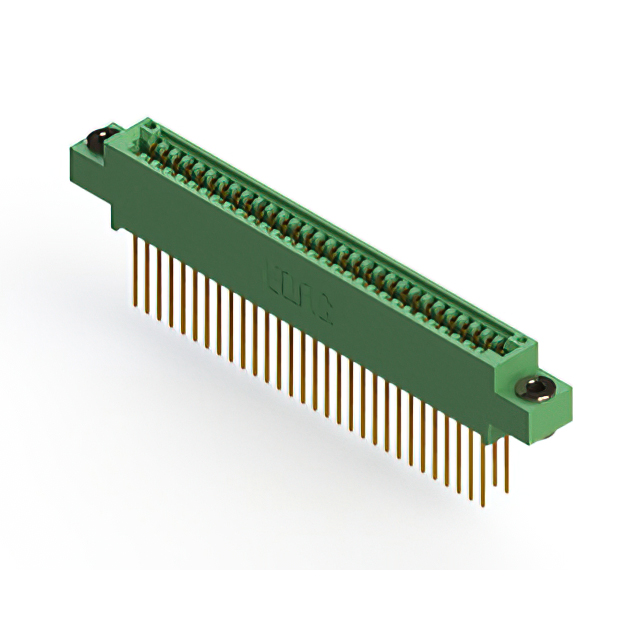

345-060-540-803 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 60POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-060-540-803
- Description：CONN EDGE DUAL FMALE 60POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-060-540-803
Edgeboard Connectors Overview
The EDAC Inc. 345-060-540-803 is a standard card edge connector featuring 60 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it accommodates PCBs up to 1.57 mm thick. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It supports a current rating of 3 A and includes flanges for secure installation.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for reliable signal transmission
- Vertical orientation with integrated flanges for panel stability
- Gold-plated contacts ensure corrosion resistance and low contact impedance
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment interfaces demanding high reliability
- Agricultural technology hardware exposed to harsh environments
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions and termination style. Ensure compatibility with target PCB thickness limits and verify RoHS compliance status prior to integration into final assembly designs.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge female connector with vertical mounting is required. Confirm that the 2.54 mm pitch aligns with the mating card edge design. Validate that the 3 A current rating meets circuit requirements and that the thermoplastic polyester housing suits the operating temperature range.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting styles. The 345-060 variant specifically provides 60 positions, balancing density and spacing for general-purpose electronic applications requiring durable connections.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC cross-reference guide for verified substitute part numbers. Do not assume generic equivalents are compatible without verifying pinout, mechanical footprint, and electrical ratings.
