345-060-558-204

Edgeboard Connectors Overview

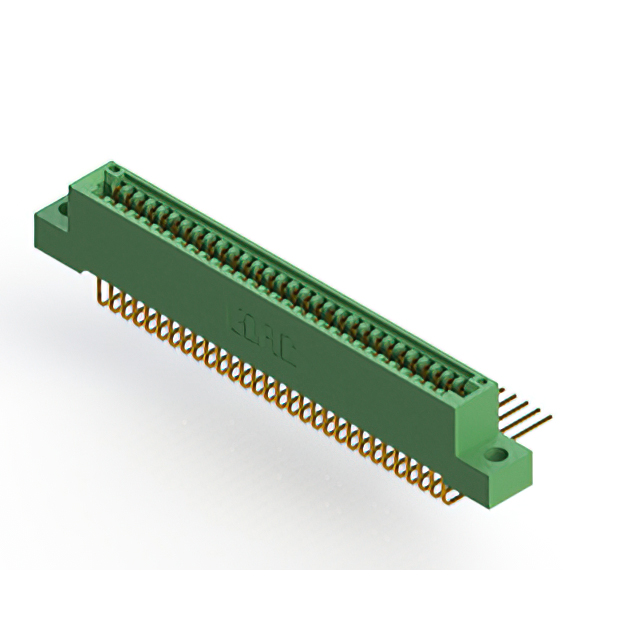

The EDAC Inc. model 345-060-558-204 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 60 positions, providing robust connectivity for high-density applications. The component utilizes a 0.100-inch (2.54mm) contact pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with copper alloy contacts and gold plating, it ensures durability and low contact resistance. The unit employs a solder pin termination method for secure board attachment.

Edgeboard Connectors Feature Summary

• Dual female contact configuration supports two rows of connections for increased I/O density
• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance
• Solder pin termination ensures secure mechanical and electrical integration onto the PCB
• Accepts standard 0.062 inch thick circuit boards for broad compatibility

Edgeboard Connectors Applications

• High-density electronic system interconnects
• Industrial control panel wiring
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style, flange options, and plating thickness. Ensure the selected variant matches the required board thickness and mounting orientation for the target assembly. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface is required for 0.062-inch thick boards. The 60-position count suits applications needing substantial parallel data or power lines within a compact footprint. Verify that the solder pin termination aligns with the manufacturing process capabilities of the production line. Confirm environmental ratings meet operational temperature requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination styles to accommodate diverse design constraints. The 345-060-558-204 specifically addresses needs for dual-sided connectivity with standard spacing, fitting into the broader ecosystem of modular interconnection solutions provided by the manufacturer.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain identical 60-position dual female geometry and 0.100-inch pitch. Verify that alternative components support the same 0.062-inch board thickness and utilize compatible solder pin terminations. Ensure material specifications for contacts and insulation match the original design requirements.
