345-061-541-103

Edgeboard Connectors Overview

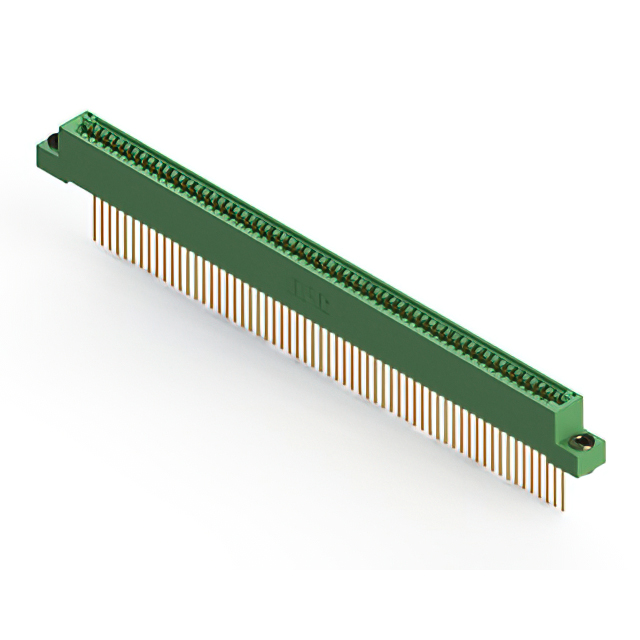

The EDAC Inc. 345-061-541-103 is a standard card edge connector socket from the 345 series, designed for vertical through-hole mounting. It features a single row with 61 positions and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated copper alloy, rated for 3 A current, while the thermoplastic polyester housing supports operation between -40°C and +105°C. Designed for PCBs up to 1.57 mm thick, it provides reliable signal transmission in high-density applications.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting configuration for secure board integration
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Thermoplastic polyester housing offers thermal stability up to 105°C

Edgeboard Connectors Applications

• High-density data storage systems requiring robust interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Industrial control modules needing reliable vertical socket connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact termination style and flange options. Ensure the target printed circuit board thickness aligns with the 1.57 mm maximum specification. Confirm that the 61-position layout matches the design-in requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row interface is required for boards up to 1.57 mm thick. The 61-position count suits moderate-to-high density applications. Verify that the 3 A current rating meets the circuit load requirements and that the operating temperature range covers the environmental conditions of the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and termination styles. The 345-061 variant specifically addresses needs for 61-position vertical sockets. The model number encodes the series, position count, and specific housing and contact characteristics defined by the manufacturer.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 345 series for alternative position counts or termination types. Verify mechanical footprint compatibility with existing PCB layouts. Ensure electrical ratings match the original design specifications before substituting.
