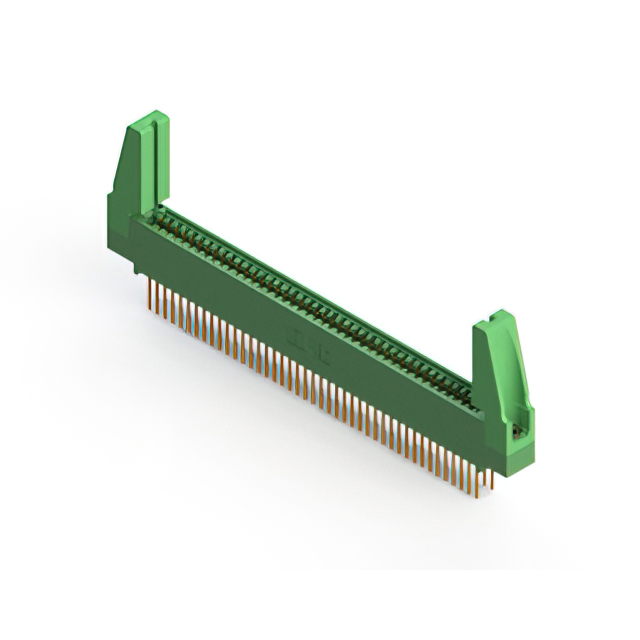

345-086-542-588 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-086-542-588
- Description：CONN EDGE DUAL FMALE 86POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：43
- Number of Positions：86
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-086-542-588
Edgeboard Connectors Overview
The EDAC Inc. 345-086-542-588 is a dual-edge female card edge connector designed for vertical through-hole mounting. It features 86 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). The housing is constructed from green thermoplastic polyester, supporting board thicknesses between 0.054 and 0.070 inches. It operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for non-specified card types
- Gold-plated cantilever spring contacts for reliable signal transmission
- Flange features include top mount opening and threaded inserts
Edgeboard Connectors Applications
- Industrial control systems requiring high-density interconnects
- Telecommunications equipment backplanes
- Computing and data storage hardware interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct flange and termination specifications. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering. Ensure compatibility with target PCB stack-up dimensions and mating card thickness requirements.
Edgeboard Connectors Selection Notes
Select this component when a high-pin-count dual-edge interface is required for panel or chassis mounting. The 86-position count and 2.54mm pitch suit applications needing substantial I/O density. Verify that the through-hole termination method aligns with the assembly process and that the operating temperature range meets environmental constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options. The 345-086 variant specifically addresses needs for higher channel counts while maintaining the standard 0.100-inch spacing common in legacy and modern industrial designs.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 345 series parts for alternative pin counts. Verify mechanical fit and electrical ratings before substituting with generic equivalents.
