345-086-555-888

Edgeboard Connectors Overview

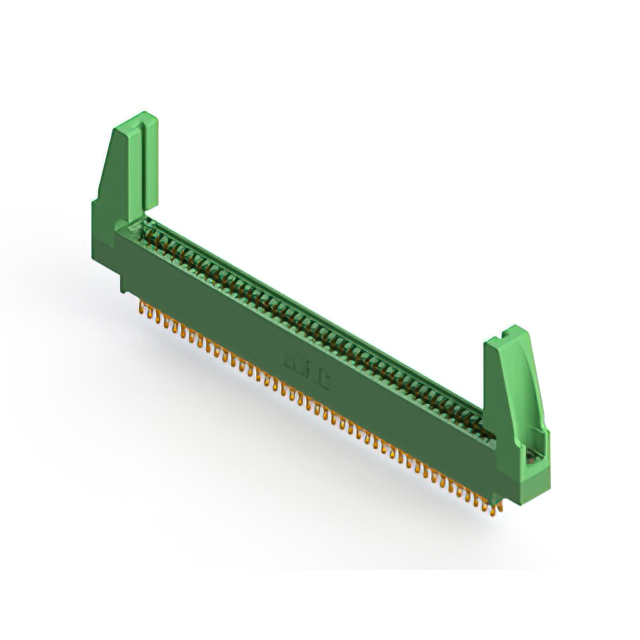

The EDAC Inc. 345-086-555-888 is a dual-edge female card edge connector with 86 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, thermoplastic polyester insulation, and a green housing. Designed for panel mounting, it supports board thicknesses of 1.57mm. The component operates within a temperature range of -40°C to +105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for standard card edge boards
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester insulation material for thermal stability
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix matches the required termination and mounting style. Confirm that the board thickness specification aligns with the target PCB design. Ensure compliance with environmental regulations such as RoHS3 is documented for the final assembly. Cross-reference the datasheet for precise dimensional tolerances before integration.

Edgeboard Connectors Selection Notes

Select this model when a high-density dual-edge interface is required for panel-mounted applications. The 86-position count suits complex signal routing needs. Consider the 0.100-inch pitch for compatibility with standard board layouts. Evaluate the operating temperature range against the environmental conditions of the intended deployment site.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and termination options. The 345 series is designed for robust performance in demanding electronic environments, providing reliable connectivity between edgeboards and host systems through standardized mechanical interfaces.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cards before considering alternative sources. Consult manufacturer guidelines for any direct replacements within the same series.
