345-094-524-201

Edgeboard Connectors Overview

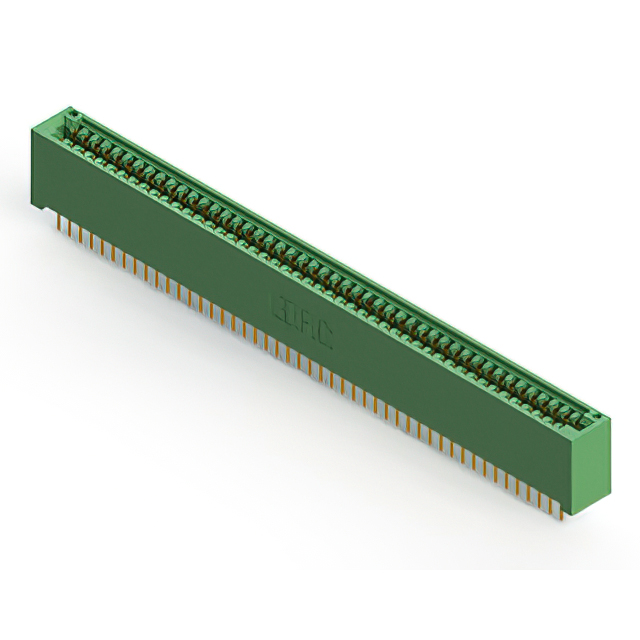

The EDAC Inc. 345-094-524-201 is a standard card edge connector designed for dual female mating configurations. It features a 94-position layout with a 0.100-inch (2.54mm) pitch across two rows. The unit utilizes copper alloy contacts with gold plating and employs a solder termination method for through-hole mounting. Rated for 3A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic polyester, accommodating board thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Through-hole solder termination supports robust PCB integration
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• High-density data storage systems
• Telecommunications infrastructure equipment
• Industrial control and automation modules
• Computing and server hardware backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB stack-up dimensions and mating card tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high I/O density is required in a vertical form factor. The dual-row design maximizes connection points within limited board space. Confirm that the operating environment remains within the specified thermal limits and that the mating card thickness falls within the accepted mechanical range.

Edgeboard Connectors Part Context

This model belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and termination options to support diverse electronic assembly requirements. The 345-094 variant specifically addresses applications needing extensive parallel signal routing.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Cross-reference pinout definitions and mechanical footprint constraints to ensure functional parity with existing system designs.
