345-094-555-808

Edgeboard Connectors Overview

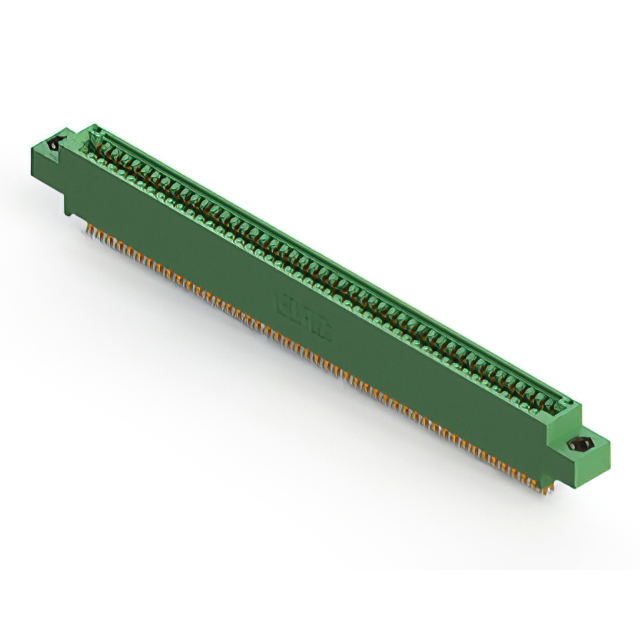

The EDAC Inc. part number 345-094-555-808 is a standard card edge connector from the 345/395 series, designed for dual female contact configurations with a total of 94 positions. It features a 0.100-inch (2.54mm) pitch and utilizes wire wrap termination methods for secure circuit attachment. The connector supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C. Constructed with copper alloy contacts finished in gold plating, it ensures reliable signal transmission. The housing is made of thermoplastic polyester, providing durability and insulation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for versatile board-to-board or backplane connections
• Wire wrap termination method ensures robust mechanical and electrical stability
• Gold-plated copper alloy contacts provide corrosion resistance and low contact impedance
• Thermoplastic polyester insulation offers high dielectric strength and thermal resilience

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation boards
• General-purpose electronic assemblies needing high-pin-count connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact termination style and flange specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference the full part number with distributor catalogs to avoid substitution errors. Validate environmental operating ranges against application requirements.

Edgeboard Connectors Selection Notes

Select this component when a high-density 94-position interface is required with wire wrap termination capabilities. Consider the 0.100-inch pitch constraint for PCB layout design. Evaluate the dual female contact type against mating connector gender requirements. Assess the thermoplastic polyester material properties for environmental exposure. Verify that the operating temperature range meets system thermal profiles.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, a line of standard card edge connectors known for reliability in harsh environments. The series typically includes various pin counts and termination options. The 345-094-555-808 variant specifically addresses high-channel-count applications. It shares common design principles with other parts in the family, such as consistent pitch and material standards.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for direct substitutes. Verify identical pin count, pitch, and termination method for functional equivalence. Ensure mating connector compatibility if replacing an existing assembly. Check dimensional drawings for panel cutout requirements.
