345-100-560-588

Edgeboard Connectors Overview

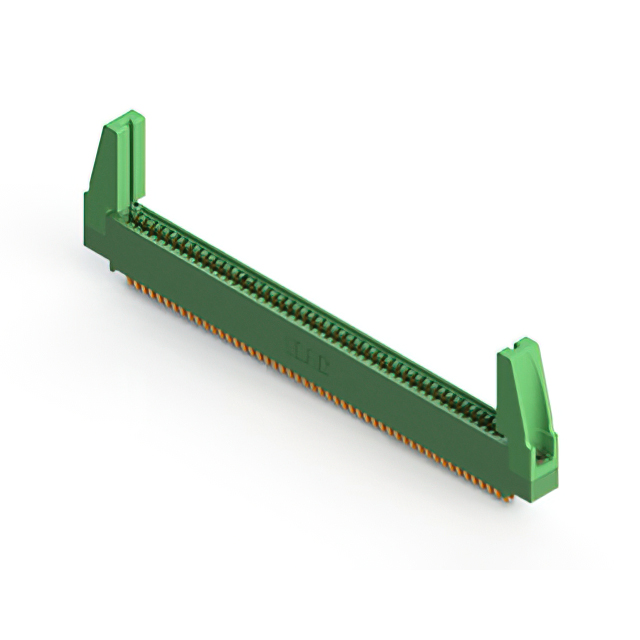

The EDAC Inc. 345-100-560-588 is a standard card edge connector from the 345 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 100 positions arranged in two rows. The connector utilizes a 0.100 inch (2.54mm) pitch and supports board thicknesses ranging from 0.054 to 0.070 inches. Constructed with copper alloy contacts featuring gold plating and a thermoplastic polyester housing, it ensures durability and low contact resistance. Rated for 3A current, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female design accommodates double-sided circuit boards for high-density interconnects.
• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Thermoplastic polyester housing offers mechanical stability and thermal resilience up to 105°C.
• Standard 2.54mm pitch ensures compatibility with industry-standard PCB layouts.

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal routing
• Medical instrumentation interfaces
• Telecommunications equipment backplanes
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and mounting orientation. Ensure the selected variant matches the required PCB thickness and current rating for the target application. Cross-reference manufacturer datasheets to validate environmental ratings and material specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 100-position interface is required for double-sided card edge applications. Confirm that the 2.54mm pitch aligns with the mating board layout. Evaluate the 3A current rating and -40°C to +105°C operating range against system thermal requirements. Verify that the through-hole or panel mount option suits the assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors, widely used in modular electronic designs. The series offers various position counts and mounting styles to support diverse interconnect needs. As a specialized interconnect solution, it complements EDAC's broader portfolio of medical and industrial-grade connectors, ensuring consistent quality across critical applications.

Edgeboard Connectors Replacement Considerations

Consult EDAC official substitution lists for direct equivalents. Verify that any alternative maintains identical 100-position dual-row geometry, 2.54mm pitch, and gold-plated contact specifications. Ensure mechanical dimensions and mounting configurations match to prevent PCB rework.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The maximum operating temperature is +105°C, as specified in the product parameters.

Does this connector support single-sided or double-sided PCBs?

It is a dual-edge connector designed specifically for double-sided printed circuit boards.

What is the contact material and plating?

The contacts are made of copper alloy with gold plating to ensure reliable conductivity and corrosion resistance.
