345-108-520-507

Edgeboard Connectors Overview

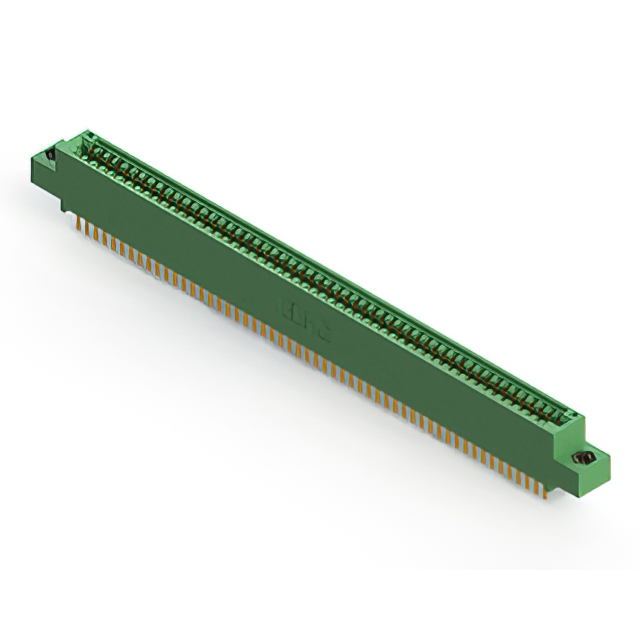

The EDAC Inc. 345-108-520-507 is a standard dual edge card edge connector designed for through-hole mounting. It features 108 female positions with a 0.100 inch (2.54mm) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The insulation material is green, providing visual identification and electrical isolation. This component belongs to the 345/395 series of card edge connectors manufactured by EDAC Inc.

Edgeboard Connectors Feature Summary

• Dual edge configuration for board-to-board connectivity
• Gold-plated copper alloy contacts for durability
• Through-hole mounting style for secure attachment

Edgeboard Connectors Applications

• Standard card edge interconnections
• Electronic module insertion systems
• Industrial control panel interfaces

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC Inc. documentation to confirm pin count and contact finish specifications. Ensure compatibility with mating card edge thicknesses and board stack-up requirements before procurement. Cross-reference manufacturer datasheets for accurate mechanical dimensions and environmental ratings.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 108 positions is required. Consider the 0.100 inch pitch constraint and through-hole assembly process. Evaluate the gold contact finish for corrosion resistance needs. Confirm that the green insulation color meets visual coding standards for the target application environment.

Edgeboard Connectors Part Context

This component is part of the EDAC 345 series, which offers various configurations for card edge applications. The 345-108-520-507 variant specifically addresses high-density connection needs with its 108-position layout. It serves as a critical interface element in modular electronic designs requiring robust physical and electrical connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models like 345-108-520-807, which shares similar structural characteristics but may differ in contact finish or flange features. Verify exact dimensional tolerances and mating interface compatibility before substituting any alternative part numbers.
