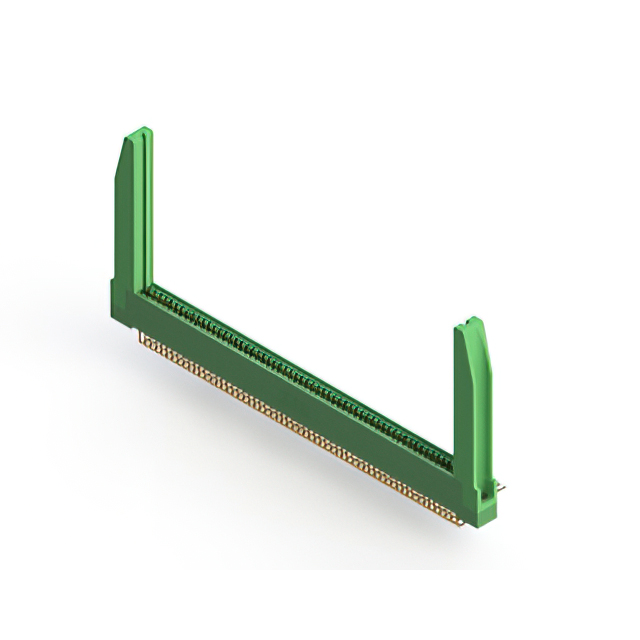

345-118-558-278 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 118POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-118-558-278
- Description：CONN EDGE DUAL FML 118POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：59
- Number of Positions：118
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-118-558-278
Edgeboard Connectors Overview
The EDAC Inc. 345-118-558-278 is a standard card edge connector featuring a 2.54 mm pitch and 118 positions arranged in two rows. It utilizes gold-plated copper contacts and a thermoplastic polyester housing. Designed for panel mounting at a right angle, the component supports a PCB thickness of 1.57 mm. The connector operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration with gold plating
- Right-angle panel mount design for secure installation
- Thermoplastic polyester housing for durability
Edgeboard Connectors Applications
- Industrial control systems requiring reliable signal transmission
- Medical interconnect solutions demanding high stability
- Agricultural technology equipment operating in harsh environments
Edgeboard Connectors Procurement Notes
Verify specific supply availability through authorized distributors as stock levels may be restricted. Confirm RoHS compliance status directly with the manufacturer or supplier documentation before finalizing procurement orders to ensure regulatory adherence.
Edgeboard Connectors Selection Notes
Select this model when a dual-row, right-angle connection is required for thick PCBs. Ensure the mating card edge thickness aligns with the specified 1.57 mm requirement. Verify that the environmental conditions do not exceed the maximum operating temperature limit of +105°C.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and configurations to support diverse electronic assembly needs across different sectors.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC ordering guide for compatible substitutes within the 345 or 395 series. Verify pin count, pitch, and mounting style compatibility before considering alternative part numbers.
