345-134-555-503

Edgeboard Connectors Overview

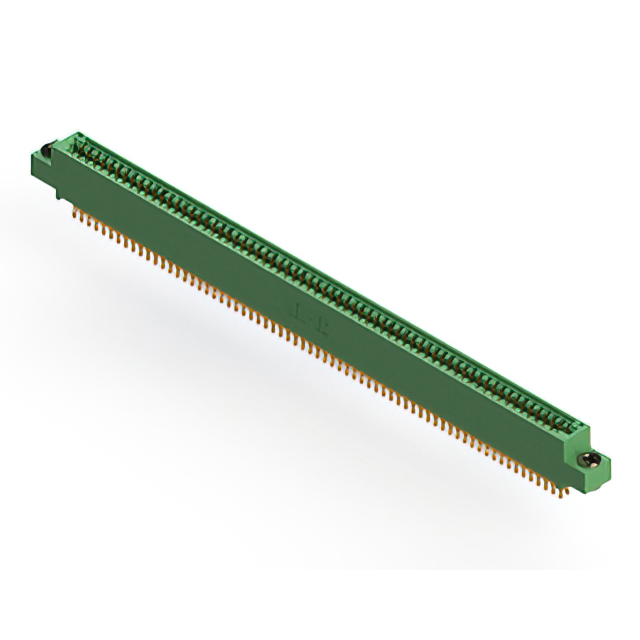

The EDAC Inc. 345-134-555-503 is a dual-edge female card edge connector designed for reliable signal and power transmission in electronic assemblies. It features a 0.100 inch (2.54mm) pitch with 134 positions, accommodating standard PCB thicknesses. The contacts are gold-plated to ensure low contact resistance and corrosion resistance over repeated mating cycles. Constructed with high-temperature insulators, this component supports robust mechanical stability and electrical performance in demanding industrial and commercial applications requiring secure board-to-board connectivity.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated contacts for enhanced conductivity and durability
• High-temperature insulator material for thermal stability
• Standard 0.100 inch pitch for broad compatibility

Edgeboard Connectors Applications

• Motherboard to daughterboard interconnections
• Signal communication interfaces in industrial equipment
• Power connection modules in computing hardware
• Extender board assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating type, and mounting style. Ensure the procurement source provides authentic EDAC Inc. components with traceable documentation. Cross-reference the part number with official distributor catalogs to confirm availability and compliance with current manufacturing standards before finalizing orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 134 positions is required for high-density signal routing. The 0.100 inch pitch ensures compatibility with standard PCB layouts. Consider the gold plating for environments requiring long-term reliability. Verify that the housing color and mounting options align with the mechanical constraints of the target enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 Series, a line of quality-engineered card edge connectors. The series focuses on providing robust I/O interconnect solutions for power and signal communication between motherboards, daughterboards, and extenders. The 345 series is recognized for its engineering precision and suitability in various electronic assembly applications requiring dependable physical connections.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variations such as 345-134-555-507, which shares similar structural characteristics. Always verify pin count, pitch, and termination style before swapping parts to ensure mechanical fit and electrical continuity without redesigning the host PCB layout.
