345-136-524-808

Edgeboard Connectors Overview

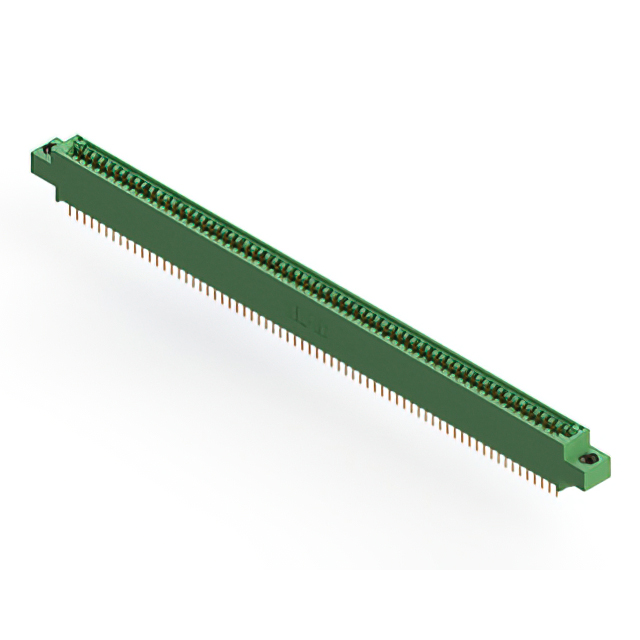

The EDAC Inc. 345-136-524-808 is a standard card edge connector featuring an 86-position configuration with a 2.54 mm pitch. Designed for through-hole vertical mounting, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports a PCB thickness of 1.57 mm and includes flanges for secure installation. It operates within a temperature range of -40°C to +105°C and carries a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance.
• Includes integrated flanges to provide mechanical stability during panel mounting.
• Supports vertical through-hole termination for robust board attachment.

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment interfaces
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact plating against the official datasheet before procurement. Confirm that the required PCB thickness aligns with the specified 1.57 mm tolerance. Ensure the mounting style matches the design requirements for vertical through-hole assembly. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 86 positions is required in a vertical orientation. The 2.54 mm pitch ensures compatibility with standard card edge layouts. Consider the gold plating for environments where oxidation resistance is critical. Verify that the thermal operating range meets the application's environmental constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 345 series, which specializes in standard card edge solutions. The series offers various position counts and mounting options to accommodate diverse electronic designs. Components in this line are engineered for durability and consistent electrical performance in demanding applications.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC substitution guide for verified alternative part numbers. Ensure any replacement maintains the same 2.54 mm pitch and 86-position count. Verify compatibility with existing PCB footprints and mounting hardware specifications.
