346-014-522-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 346-014-522-201
- Description：CONN EDGE DUAL FMALE 14POS 0.125
- Series：346
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 346-014-522-201
Edgeboard Connectors Overview

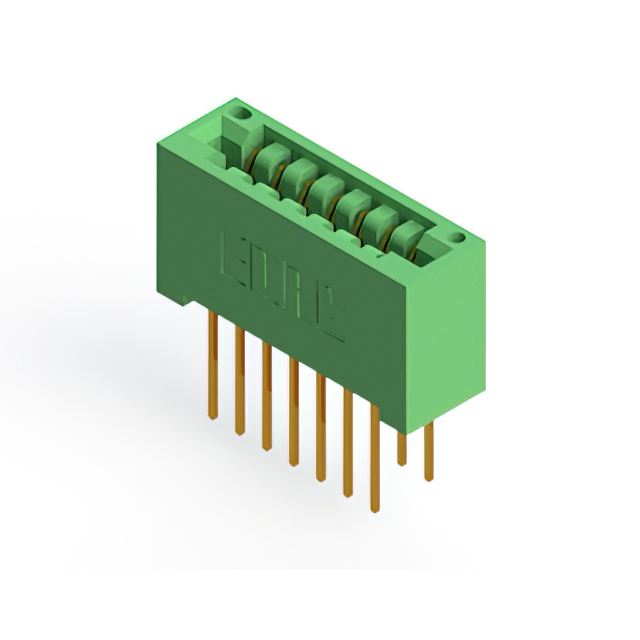

The EDAC Inc. model 346-014-522-201 is a standard card edge connector receptacle featuring 14 positions with a 3.18 mm (0.125 inch) pitch. Designed for dual-edge mating, it accommodates board thicknesses ranging from 1.37 mm to 1.78 mm. The component utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports through-hole solder pin termination and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Gold-plated copper alloy contacts ensure reliable conductivity
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Electronic circuit board interconnection systems
- Industrial control module mounting
- Communication equipment signal routing
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and housing color variations. Ensure that the selected variant matches the required board thickness tolerance and termination style specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, dual-edge connector is required for boards between 1.37 mm and 1.78 mm thick. The 14-position count and 3.18 mm pitch define the spatial layout constraints. Confirm compatibility with the target PCB's soldering profile and mechanical retention needs.
Edgeboard Connectors Part Context
This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination styles. This specific model represents a mid-range position count option designed for vertical or panel mount applications using solder pins.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 346 series variants such as 346-014-522-103 for potential pin-style differences. Verify identical pitch and board thickness compatibility before substituting.
