346-016-500-607

Edgeboard Connectors Overview

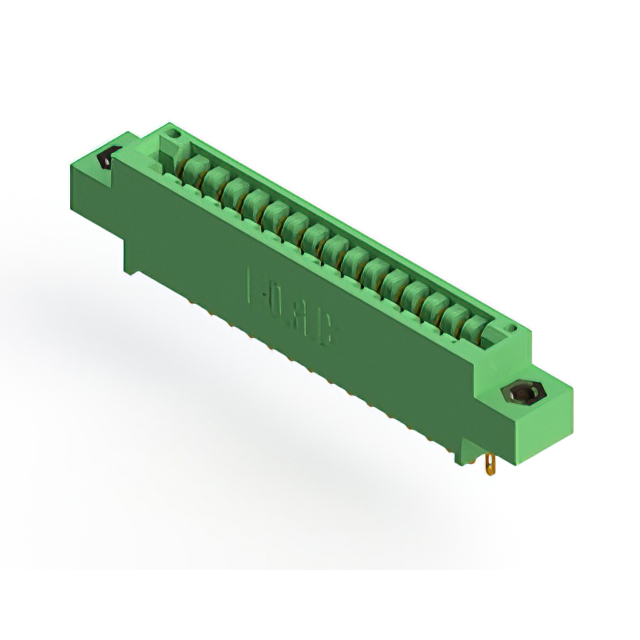

The EDAC Inc. 346-016-500-607 is a standard card edge connector featuring 16 positions in a single row of female contacts. It utilizes a 0.125-inch (3.18mm) pitch and employs wire terminal termination for secure electrical connections. The insulator is constructed from green thermoplastic polyester, providing reliable insulation properties. This component supports an operating temperature range of -40°C to +105°C and includes M3 threaded inserts for panel mounting applications.

Edgeboard Connectors Feature Summary

• Single row female contact configuration with gold plating
• Wire wrap termination method for robust connection
• Panel mount design incorporating M3 threaded inserts

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required termination styles and flange features. Confirm that the selected variant matches the intended board thickness and mounting orientation requirements for your specific assembly design before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with a 0.125-inch pitch is required for high-reliability applications. Ensure the design accommodates wire wrap termination processes and panel mounting constraints defined by the M3 threaded insert specifications. Validate thermal performance needs against the specified operating temperature range.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and configurations designed for general-purpose electronic interconnects. The 346 series emphasizes durability and standardized dimensions to facilitate integration into diverse industrial and commercial electronic systems requiring reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 346-016-500-807, which shares similar dimensional characteristics but may differ in row count or specific flange features. Always cross-reference official datasheets to confirm mechanical fit and electrical continuity before substituting components.
