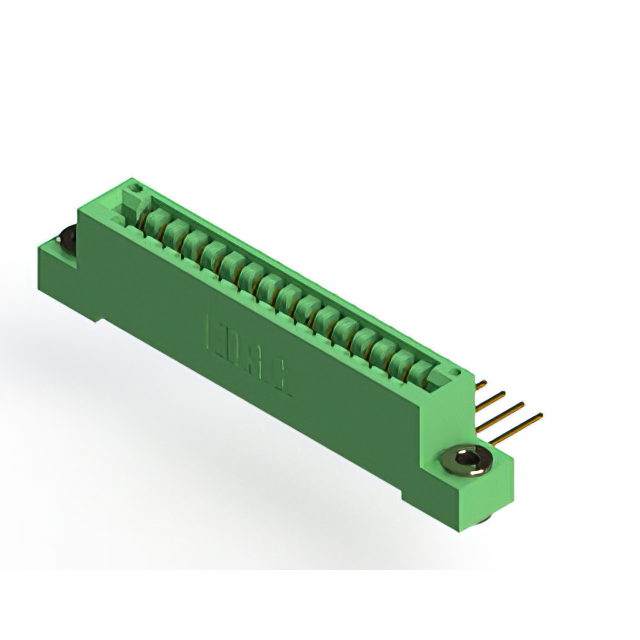

346-016-559-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 16POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 346-016-559-103
- Description：CONN EDGE SGL FMALE 16POS 0.125
- Series：346
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.125" (3.18mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder, Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 346-016-559-103
Edgeboard Connectors Overview
The EDAC Inc. 346-016-559-103 is a standard card edge connector receptacle from the 346 series. It features 16 positions with a 3.175 mm pitch and supports a maximum board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and offers a current rating of 3 A. Insulation resistance is specified at 5 GOhms, and it operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
- Thermoplastic polyester housing provides structural stability and electrical insulation.
- Vertical mounting orientation facilitates direct board insertion connections.
Edgeboard Connectors Applications
- High-density electronic module interconnections
- Industrial control system backplanes
- Telecommunications equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the specific termination style and mounting configuration against the official datasheet before procurement. Confirm that the required PCB thickness aligns with the 1.57 mm specification. Ensure environmental ratings meet operational requirements for the intended application environment.
Edgeboard Connectors Selection Notes
Select this component when a vertical, single-row card edge interface is required. Consider the 3.175 mm pitch and 3 A current capacity for circuit design compatibility. Verify that the thermoplastic polyester material meets thermal and mechanical constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination options. The 346 series is designed for robust performance in demanding electronic environments, providing consistent connectivity solutions.
Edgeboard Connectors Replacement Considerations
Cross-reference compatible parts within the EDAC 346 series based on matching position count and pitch. Verify equivalent termination types and mounting styles for direct substitution.
