346-017-540-104

Edgeboard Connectors Overview

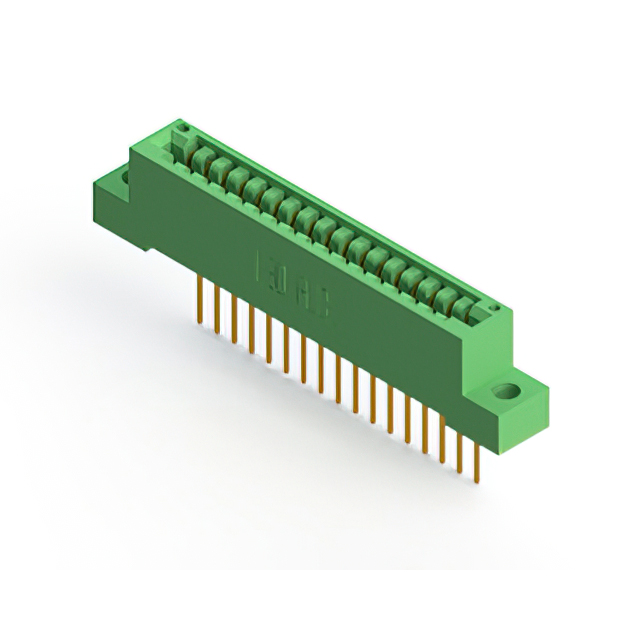

The EDAC Inc. 346-017-540-104 is a standard card edge connector from the 346 series, designed for vertical panel mount applications. It features a single row with 17 positions and a contact spacing of 3.175 mm (0.125 inches). The connector accommodates a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 3 A current, it operates within a temperature range of -40 C to +105 C. The housing is constructed from green thermoplastic polyester, providing an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure structural integration
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulator housing for durability and electrical isolation

Edgeboard Connectors Applications

• General electronic equipment interconnection
• Industrial control system modules
• Communication hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB designs. Ensure that the required contact spacing, row count, and mounting style align with the mechanical constraints of the application. Cross-reference the thermal ratings and current capacity with system operational requirements before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for panel-mounted installations. Consider the 3.175 mm pitch and 1.57 mm board thickness compatibility during the design phase. Evaluate the environmental operating range and material specifications to ensure suitability for the intended industrial or commercial usage conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic interconnection needs. As a receptacle type, it provides a robust connection point for mating card edge boards in structured assembly environments.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical specifications when evaluating alternative components from other manufacturers.
