346-024-541-807

Edgeboard Connectors Overview

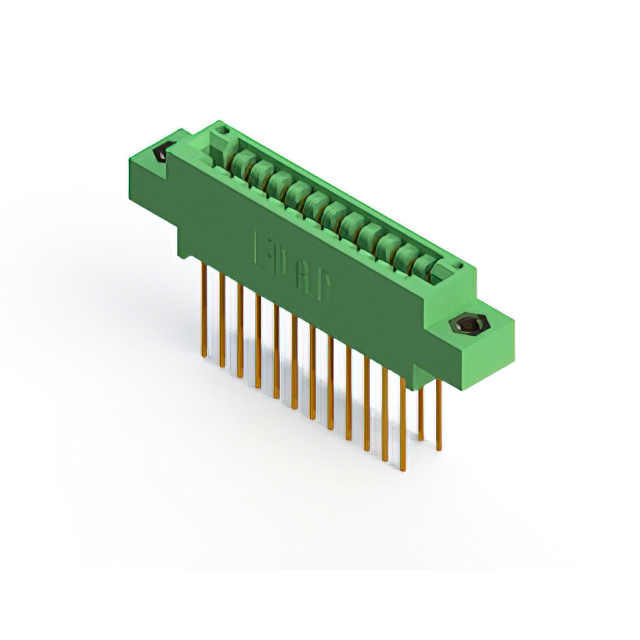

The EDAC Inc. model 346-024-541-807 is a standard card edge connector receptacle belonging to the 346 series. It features 24 positions with a contact spacing of 0.125 inches (3.18 mm). Designed for through-hole mounting, this vertical connector utilizes wire wrap termination and gold-plated copper alloy contacts. The housing is constructed from thermoplastic polyester in green color. It supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 to 1.78 mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration designed for reliable edgeboard mating
• Gold-plated contacts ensure stable signal transmission
• Thermoplastic polyester housing provides structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Consumer electronics assembly boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB board thickness limits before procurement. Confirm RoHS compliance status via current manufacturer datasheets as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required for applications needing wire wrap termination. Evaluate the 0.125-inch pitch against available routing space on the target circuit board. Consider the operating temperature range and material compatibility with adjacent components during thermal cycling conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series, which offers a comprehensive range of standard card edge connectors. The series is characterized by its versatility in position counts and termination options, serving various sectors including industrial, medical, and communications. The 346 series maintains consistent mechanical dimensions across variants while allowing customization in electrical ratings.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise dimensional tolerances or termination characteristics required for secure installation.
