346-034-526-208

Edgeboard Connectors Overview

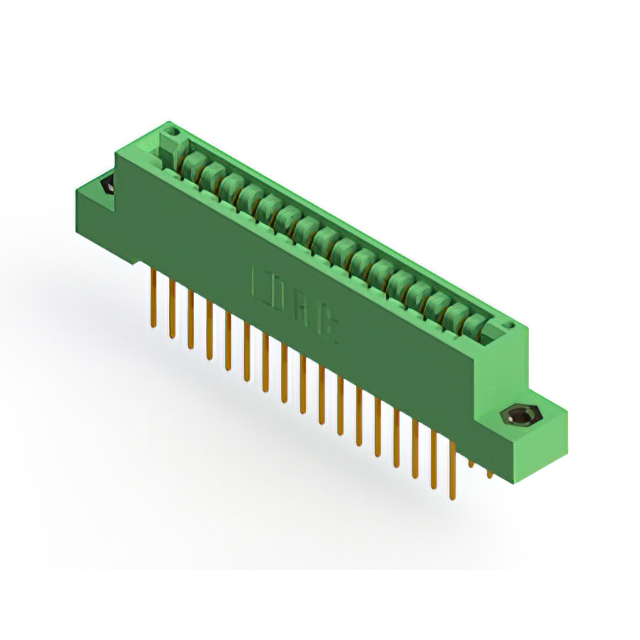

The EDAC Inc. 346-034-526-208 is a standard card edge connector from the 346 series, designed for vertical through-hole mounting. It features a dual-edge female configuration with 34 positions and a contact spacing of 0.125 inches (3.18mm). The contacts are gold-plated to ensure reliable signal transmission, while the insulator is constructed from thermoplastic polyester in a green color. This component supports PCB thicknesses of 1.57mm and is rated for operation within a temperature range of -55°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Vertical through-hole termination style for stable PCB integration
• Thermoplastic polyester insulator housing for durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Consumer electronics mainboards
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and insulation material properties. Ensure compatibility with the target PCB thickness and mounting orientation requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.125-inch spacing is required for vertical mounting. Consider the 34-position capacity and gold contact plating for applications demanding high reliability and low contact resistance in industrial or commercial environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and configurations, providing versatile solutions for connecting printed circuit boards. The 346 series is characterized by its durable construction and standardized dimensions, facilitating widespread use across multiple electronic industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference part numbers. Verify that any substitute matches the 34-position count, 0.125-inch pitch, and dual-edge female interface specifications.
