346-036-520-212

Edgeboard Connectors Overview

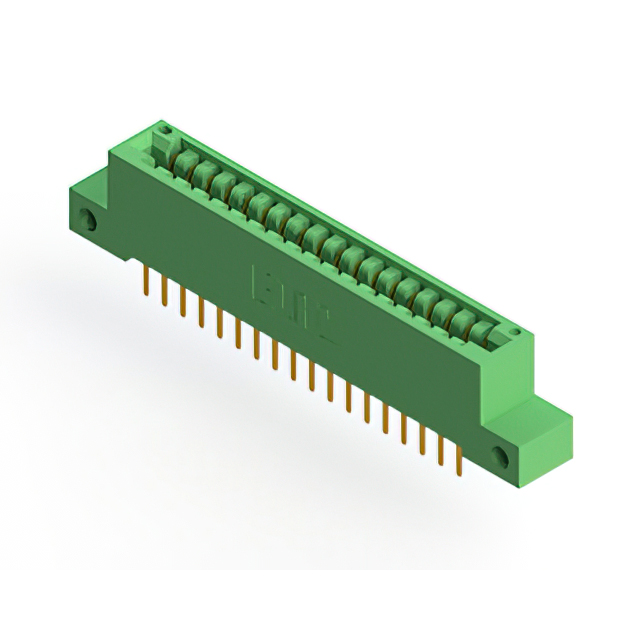

The EDAC 346-036-520-212 is a standard card edge connector receptacle featuring 36 positions with a 3.175 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. Designed for through-hole vertical mounting, it supports a PCB thickness of 1.57 mm and offers a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for card edge interface
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester insulator material
• Vertical through-hole termination style

Edgeboard Connectors Applications

• General electronic circuit board interconnections
• Industrial control system modules
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact termination type and plating specifications. Ensure compatibility with the target PCB thickness and mounting orientation requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 36-position dual row card edge connector is required. Confirm that the 3.175 mm pitch and 3 A current rating align with the design specifications. Verify the through-hole vertical mounting style matches the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series provides various position counts and termination options. The 346 series is designed for general-purpose applications requiring robust mechanical and electrical connections.

Edgeboard Connectors Replacement Considerations

Check for parts within the same 346 series family with matching position counts and pitch. Verify that alternative components share the same mounting style and current rating capabilities.
