Edgeboard Connectors Overview

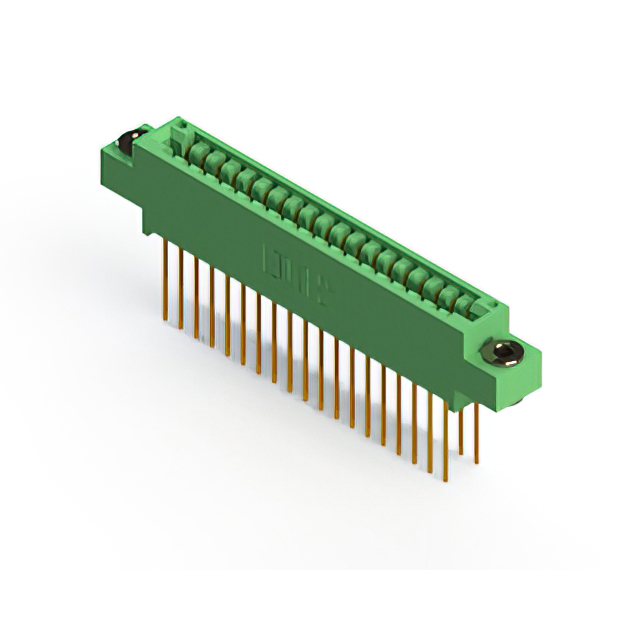

The EDAC Inc. 346-038-541-803 is a dual female card edge connector featuring 38 positions with a 0.125-inch pitch. It utilizes thermoplastic polyester housing and copper alloy contacts rated for 3 A current. The component offers 5 GOhms insulation resistance and operates up to +105°C. Designed as a receptacle, it supports standard card edge interfaces.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable signal transmission
• Thermoplastic polyester housing material for durability
• Copper alloy contacts ensuring stable electrical performance

Edgeboard Connectors Applications

• Standard card edge interconnects
• Receptacle applications in electronic assemblies
• High-temperature circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with mating card thickness and verify RoHS compliance status through manufacturer datasheets before integration into production designs.

Edgeboard Connectors Selection Notes

Select this component when a dual female card edge connector with 38 positions is required. Consider the 0.125-inch pitch and 3 A current rating for suitability. Evaluate thermal requirements against the +105°C maximum operating temperature limit during design phase.

Edgeboard Connectors Part Context

This part belongs to the EDAC standard card edge connector family. It shares design characteristics with other models offering multiple row configurations and mounting options. The series provides various contact terminations and insulator solutions for diverse electronic connectivity needs.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers such as 346-038-541-603 for similar specifications. Verify dimensional and electrical compatibility before substitution. Consult official distributor catalogs for confirmed equivalent part numbers.
