346-060-540-208

Edgeboard Connectors Overview

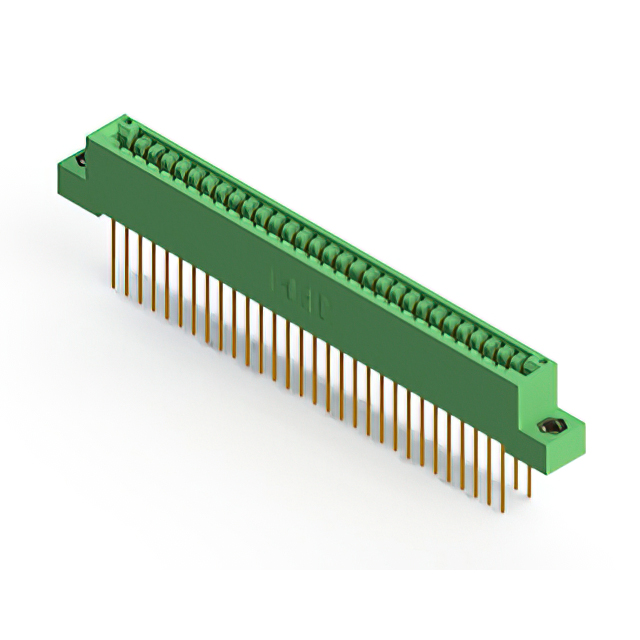

The EDAC Inc. 346-060-540-208 is a standard card edge connector receptacle featuring 60 positions with a 3.175 mm pitch. It supports a maximum board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 3 A current. Designed for vertical through-hole mounting, this component employs wire wrap termination methods. The housing is constructed from thermoplastic polyester, ensuring durability in electronic assemblies requiring reliable signal transmission.

Edgeboard Connectors Feature Summary

• Gold-plated contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural integrity
• Vertical orientation facilitates panel integration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Medical device interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and termination style compatibility. Ensure the selected variant matches the required PCB thickness specification of 1.57 mm. Confirm that the vertical mounting configuration aligns with the mechanical constraints of the target enclosure design before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 60-position interface is required with a 3.175 mm pitch. Verify that the application environment remains within the specified operating temperature range. Ensure the circuit design accommodates the 3 A current rating per contact. Confirm that the wire wrap termination method is compatible with the manufacturing process used for the printed circuit board assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and mounting orientations to suit different board density requirements. Components in this family share common dimensional standards for card edge interfaces, allowing for modular design approaches in electronic hardware development projects.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any alternative part maintains identical pitch, position count, and mounting style specifications to ensure mechanical fit.
