346-066-522-878

Edgeboard Connectors Overview

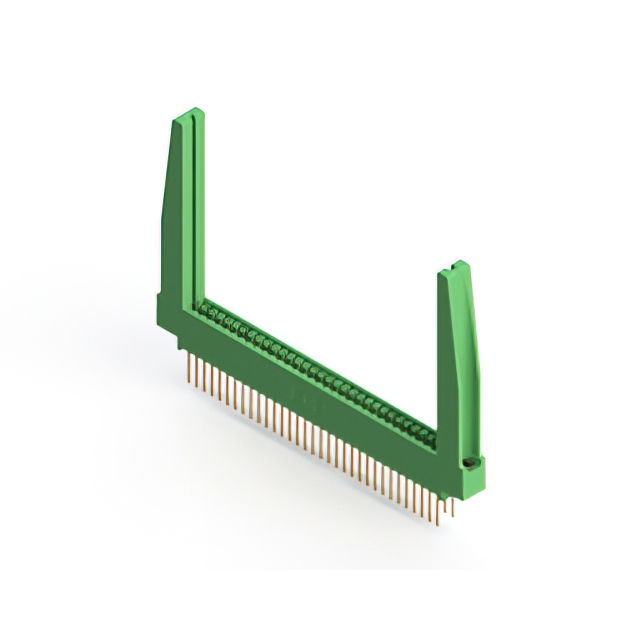

The EDAC Inc. model 346-066-522-878 is a standard card edge connector from the 346 series, designed for vertical panel mounting applications. This component features a dual female configuration with 66 positions and a contact spacing of 0.125 inches (3.175 mm). It is engineered to accommodate printed circuit boards with a thickness of 1.57 mm. The connector utilizes PC pin termination types for secure attachment. The housing is constructed from thermoplastic polyester, providing structural integrity and electrical insulation properties suitable for industrial environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable signal transmission
• Vertical panel mount style for space-efficient integration
• Thermoplastic polyester insulator for durable performance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board assembly
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number 346-066-522-878 against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the receiving PCB meets the specified 1.57 mm thickness tolerance for proper insertion. Cross-reference the 66-position count and 0.125-inch pitch with your schematic to prevent mismatch errors during procurement and assembly processes.

Edgeboard Connectors Selection Notes

Select this connector when a vertical panel-mount solution with 66 contacts is required. The 0.125-inch pitch allows for standard trace routing on compatible PCBs. Consider the thermoplastic polyester housing material for environmental resistance. Verify that the dual female interface aligns with the mating card edge connector specifications in your system architecture before finalizing the component choice.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 346-066-522-878 variant specifically addresses applications needing a high-density vertical connection point with a dual female interface, fitting within the broader family of reliable interconnect solutions provided by EDAC Inc.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or datasheets for confirmed equivalent part numbers. Do not assume cross-compatibility with other series without verifying mechanical dimensions and electrical ratings.
