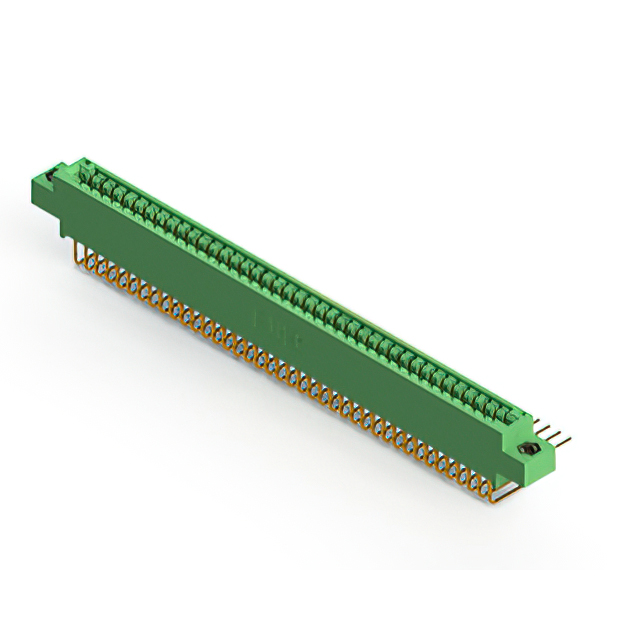

346-080-558-808 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 80POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 346-080-558-808
- Description：CONN EDGE DUAL FMALE 80POS 0.125
- Series：346
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：80
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder, Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 346-080-558-808
Edgeboard Connectors Overview
The EDAC 346-080-558-808 is a standard card edge connector featuring 80 positions with a 3.175 mm (0.125 inch) pitch. It utilizes gold-plated copper alloy contacts and thermoplastic polyester housing. Designed for vertical through-hole mounting, it supports a 3 A current rating and operates within a temperature range of -55°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Gold-plated contacts ensure reliable signal transmission and corrosion resistance
- Vertical orientation facilitates efficient panel or chassis integration
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Medical device circuit board connections
Edgeboard Connectors Procurement Notes
Verify the complete part number including suffixes against official EDAC documentation to confirm specific plating thickness and material certifications. Ensure compatibility with target PCB thickness specifications before procurement. Confirm availability status with authorized distributors as supply conditions may vary by region.
Edgeboard Connectors Selection Notes
Select this component when a high-density 80-position interface is required with a 3.175 mm pitch. The vertical mounting style suits applications needing direct board-to-board or board-to-panel connections. Verify that the 3 A current rating meets the electrical requirements of the target circuit design.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 346 series, which provides standard card edge solutions. The series offers various position counts and mounting styles to support diverse electronic assembly needs. It serves as a reliable interconnection solution for general-purpose electronic modules requiring robust mechanical and electrical performance.
Edgeboard Connectors Replacement Considerations
Cross-reference with other 80-position, 3.175 mm pitch connectors from compatible manufacturers. Ensure identical mounting orientation, contact plating, and current ratings are maintained during substitution.
