346-100-560-812

Edgeboard Connectors Overview

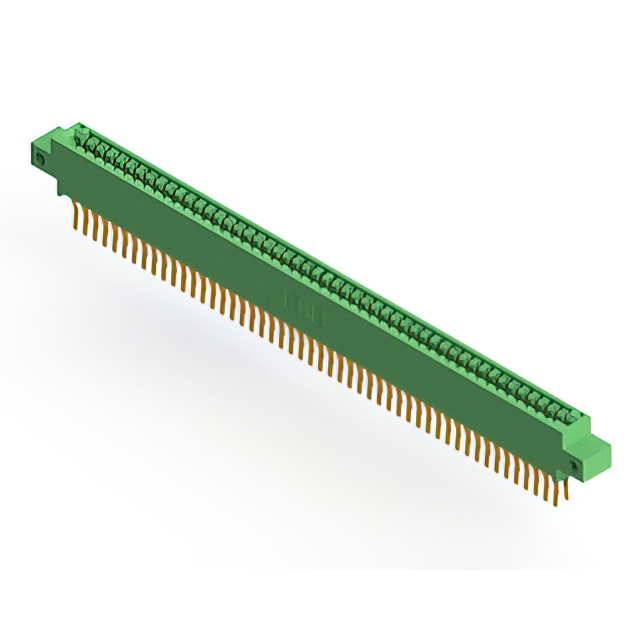

The EDAC 346-100-560-812 is a standard card edge connector receptacle featuring 100 positions arranged in a dual row configuration. It utilizes a 3.175 mm (0.125 inch) contact pitch and is designed for vertical through-hole mounting on printed circuit boards with a maximum thickness of 1.57 mm. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission, supporting a current rating of 3 A. The housing is made of green thermoplastic polyester, providing structural integrity and environmental resistance for industrial applications.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density board connections
• Gold-plated copper alloy contacts for enhanced conductivity and durability
• Vertical through-hole termination style for secure PCB integration
• Green thermoplastic polyester insulator for mechanical stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device internal circuitry
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the ordering suffix matches the exact termination type and contact finish specifications required for your application. Cross-reference the datasheet for precise dimensional tolerances and mating force characteristics before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 0.125-inch pitch is required. Consider the 3 A current rating and gold plating for applications demanding reliable electrical performance. Verify that the PCB stack-up accommodates the specified board thickness limit and that the through-hole mounting style aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination options, catering to diverse electronic assembly needs. The 346 series is characterized by its consistent 0.125-inch pitch and robust construction, making it a common choice for general-purpose interconnect solutions in commercial and industrial electronics.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult EDAC directly or review the full 346 series catalog for potential alternatives with matching electrical and mechanical specifications.
