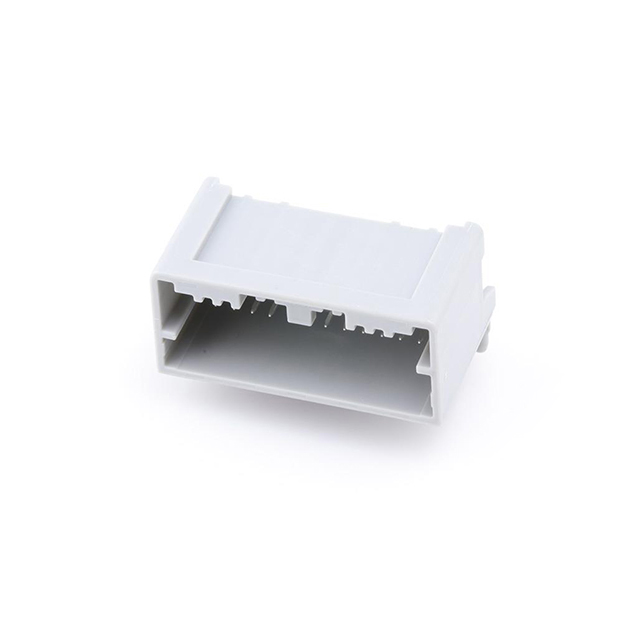

348269201

348269201 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is MINI50 RAHDR 20CKT GRY POL B TUB. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 348269201

• Description：MINI50 RAHDR 20CKT GRY POL B TUB
• Series：Mini50 34826
• Mfr：Molex
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：20
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：0.110" (2.80mm)
• Overall Contact Length：-
• Insulation Height：-
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Syndiotactic Polystyrene (SPS), Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Gray
• Current Rating (Amps)：4A
• Voltage Rating：500V

Headers, Male Pins datasheet and documents for 348269201
