350-10-117-00-013101

Headers, Male Pins Overview

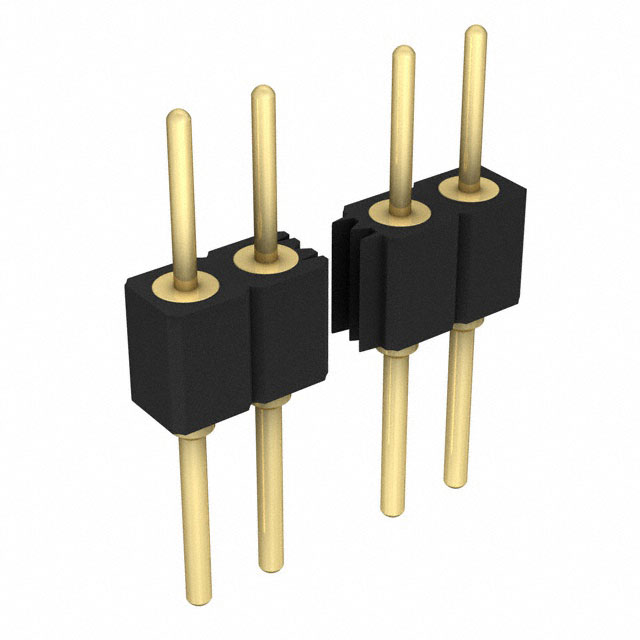

The Preci-Dip 350-10-117-00-013101 is a vertical header connector designed for board-to-board applications. It features 17 positions with a 0.100 inch (2.54mm) pitch across a single row. The contacts are gold-plated brass pins, providing reliable electrical performance. Rated for 3A current and 150VDC, it utilizes through-hole termination. The housing is constructed from black PCT material, rated UL94 V-0, ensuring stability within an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical pin header configuration for direct PCB mounting
• Gold-plated contact surfaces for enhanced conductivity
• UL94 V-0 rated fiberglass-reinforced PCT insulation
• Through-hole solder termination style

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control system modules
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific pin count matches the '117' series designation, as standard tables often list even numbers like 16 or 18. Confirm that the gold plating specification aligns with project requirements, as some variants in this family use tin. Ensure the vertical orientation fits the mechanical clearance constraints of the final enclosure design before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position vertical header is required. The 2.54mm pitch ensures compatibility with standard DIP components and breadboards. Gold plating is preferred for environments requiring corrosion resistance. Verify that the 3A rating meets the circuit's maximum load requirements under the specified temperature conditions.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 350 series, which offers various position counts and contact finishes. While similar parts like the 350-10-116 exist, the 17-position variant provides a unique count for specific layout needs. The series is characterized by its robust construction and wide thermal operating range suitable for diverse industrial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 17-position headers with identical 2.54mm pitch and vertical orientation. Cross-reference with Preci-Dip part number 350-10-117 using different suffixes for alternative plating options if gold is unavailable. Ensure any replacement maintains the same UL94 V-0 rating and current capacity.
