350-80-102-00-024101

Headers, Male Pins Overview

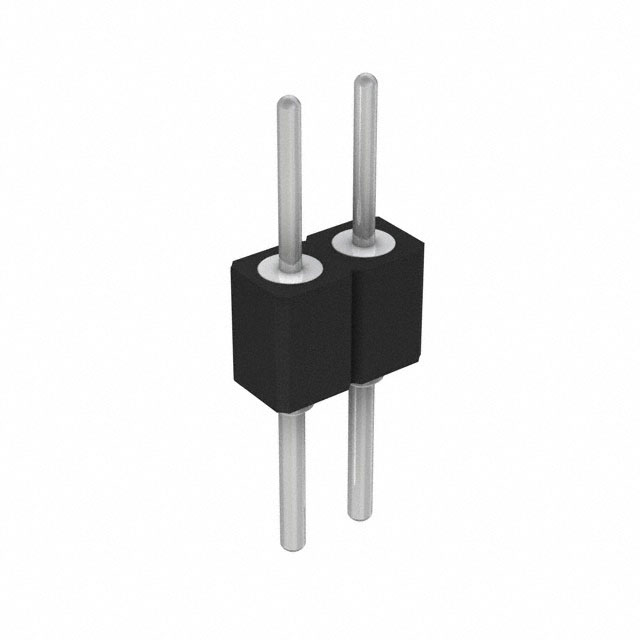

The Preci-Dip 350-80-102-00-024101 is a vertical board-to-board connector header featuring two positions with a 0.100-inch (2.54mm) pitch. It utilizes through-hole termination and straight male pin contacts made of brass with tin plating. The unit operates within a temperature range of -55°C to +125°C, supporting up to 150VDC and 3A per contact. Constructed from black PCT insulation rated UL94 V-0, it offers an ultralow profile design suitable for space-constrained applications.

Headers, Male Pins Feature Summary

• Ultralow profile construction minimizes vertical space requirements on the PCB
• Single row configuration simplifies assembly and inspection processes
• Tin-plated brass contacts ensure reliable conductivity and corrosion resistance

Headers, Male Pins Applications

• Prototype development boards requiring easy hand-soldering
• Laboratory fixtures and test equipment connections
• Space-constrained electronic assemblies needing low-height headers

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 2-position variant, as the 350 series includes numerous other pin counts. Confirm RoHS3 compliance status if required by project specifications. Ensure the through-hole mounting style aligns with the target PCB manufacturing capabilities. Check for any specific handling instructions related to the ultralow profile design during assembly.

Headers, Male Pins Selection Notes

Select this component when a minimal footprint and height are critical for the design. The single-row layout is ideal for simple signal or power connections where high density is not required. Consider the 2.54mm pitch compatibility with standard mating connectors. Evaluate the thermal and current ratings against the specific application loads to ensure adequate performance margins.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 350 series, known for ultralow profile headers. The series offers various pin counts and configurations for board-to-board interconnects. The 350-80 base indicates a specific family of vertical headers designed for high-density applications. Preci-Dip manufactures these components using precision turning machines for consistent contact quality.

Headers, Male Pins Replacement Considerations
