350-80-103-00-013101

Headers, Male Pins Overview

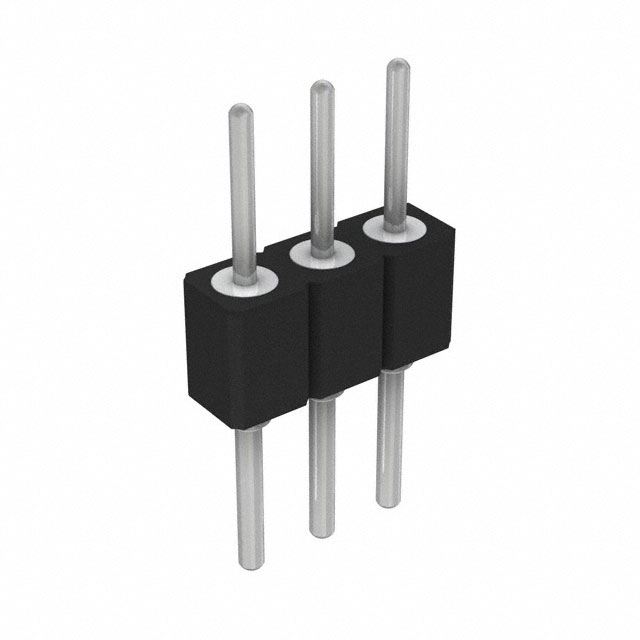

The Preci-Dip 350-80-103-00-013101 is a vertical board-to-board header connector designed for through-hole mounting. It features 3 positions with a 0.100 inch (2.54 mm) mating pitch and single row configuration. The contacts are made of brass with tin plating, rated for 3A current and 150VDC. The insulator is black PCT polyester reinforced with glass fiber, UL94 V-0 rated. Operating temperature range is -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Through-hole solder tail termination
• Push-pull locking mechanism
• High-temperature resistant PCT insulation

Headers, Male Pins Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the exact pin count matches the '103' suffix in the part number before ordering. Confirm that the tin-plated contact finish meets your corrosion resistance requirements. Ensure the PCB footprint aligns with the specified 2.54mm pitch and vertical orientation. Check RoHS compliance status if required by your manufacturing standards.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is needed for direct board stacking. The tin-plated contacts offer cost-effective conductivity suitable for general-purpose applications. Consider the push-pull lock if vibration resistance is critical. Compare against series 351 or 450 if gold plating or different heights are preferred.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 350 series of rectangular connectors. The series is characterized by its robust construction and suitability for high-density board-to-board connections. The specific model utilizes standard 2.54mm spacing, making it compatible with a wide range of industry-standard components and PCB layouts.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 3-position, 2.54mm pitch vertical headers from manufacturers like Molex or Samtec, provided they match the mechanical dimensions and electrical ratings. Verify that any alternative maintains the same push-pull locking feature and through-hole termination style.
