350-80-125-00-006101

Headers, Male Pins Overview

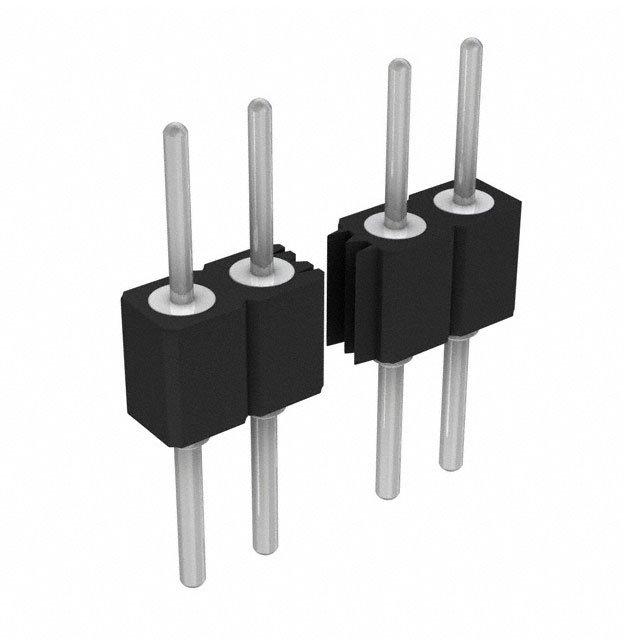

The Preci-Dip 350-80-125-00-006101 is a board-to-board header connector featuring 25 positions in a single row with a 2.54 mm (0.1 inch) pitch. Designed for vertical through-hole mounting, it utilizes male pin contacts made of brass with tin plating on the tail and mating surfaces. The connector supports a rated voltage of 150 VDC and a current capacity of 3 A. It employs a push-pull locking mechanism to ensure secure engagement. The housing is constructed from black glass-filled polyester meeting UL94 V-0 flammability standards, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole design for direct PCB insertion
• Push-pull locking system for secure mechanical retention
• Tin-plated brass contacts for reliable conductivity
• UL94 V-0 rated glass-filled polyester insulation

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and orientation before ordering. Confirm that the tin-plated finish meets the environmental requirements of the target application. Ensure the push-pull locking style is compatible with the mating socket components used in the final assembly design.

Headers, Male Pins Selection Notes

Select this component when a vertical through-hole header with a push-pull locking feature is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the 3 A current rating and 150 VDC voltage limit to ensure compliance with circuit specifications. Verify that the physical dimensions fit within the available board space constraints.

Headers, Male Pins Part Context

This component belongs to the Preci-Dip 350 series, which offers various configurations including surface mount and different pin counts. The 350-80-125-00-006101 variant specifically denotes a 25-position vertical through-hole header. Other series members may differ in mounting style, contact material, or locking mechanisms.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 25-position, 2.54 mm pitch headers with vertical through-hole mounting and push-pull locking features. Ensure that any replacement maintains the same electrical ratings and mechanical footprint to guarantee interchangeability without redesigning the PCB layout.
