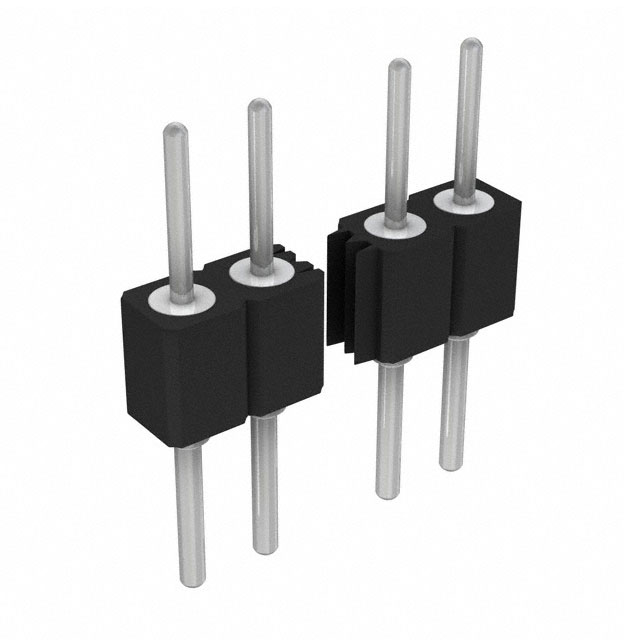

350-80-135-00-012101

350-80-135-00-012101 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN HEADER VERT 35POS 1.78MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 350-80-135-00-012101

• Description：CONN HEADER VERT 35POS 1.78MM
• Series：350
• Mfr：Preci-Dip
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.070" (1.78mm)
• Number of Positions：35
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.154" (3.91mm)
• Contact Length - Post：0.163" (4.15mm)
• Overall Contact Length：0.475" (12.07mm)
• Insulation Height：0.112" (2.85mm)
• Contact Shape：Circular
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A
• Voltage Rating：150VDC

Headers, Male Pins datasheet and documents for 350-80-135-00-012101
