350-80-151-01-899101

Headers, Male Pins Overview

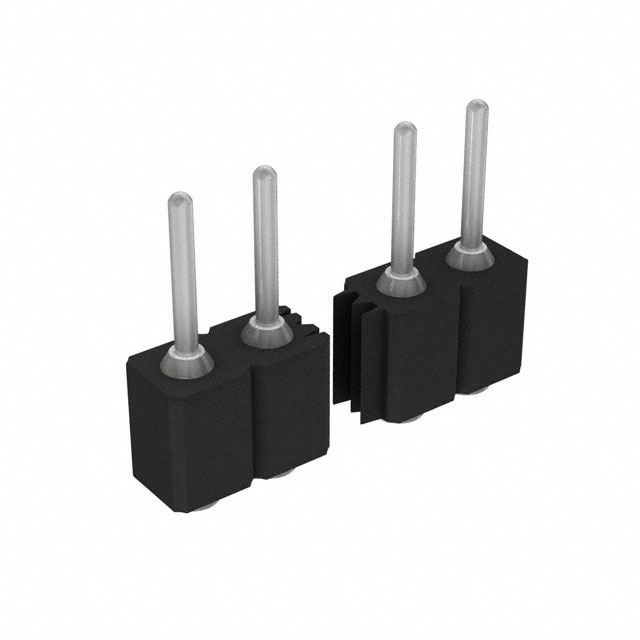

The Preci-Dip 350-80-151-01-899101 is a surface mount header connector featuring 51 positions with a 2.54mm pitch. It utilizes round, tin-plated brass pins and PCT insulation rated UL94 V-0. Designed for board-to-board applications, it supports 3A current at 150VDC across a -55°C to 125°C range.

Headers, Male Pins Feature Summary

• Surface mount design for automated assembly
• Push-pull locking mechanism for secure mating
• Tin-plated contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Electronic device internal wiring
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch against the target PCB footprint before ordering. Confirm that the surface mount termination style matches the manufacturing process capabilities. Ensure the operating temperature range aligns with the final application environment requirements.

Headers, Male Pins Selection Notes

Select this component when a high-density, single-row header is required for surface mounting. The 2.54mm pitch offers standard spacing compatibility. Consider the push-pull feature if mechanical retention during operation is critical for the assembly.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 350 series of rectangular connectors. The series provides various position counts and mounting styles. It is designed for general electronic interconnection needs requiring robust performance in compact spaces.

Headers, Male Pins Replacement Considerations

Check for compatible headers from other manufacturers offering identical 2.54mm pitch and 51-position configurations. Verify that any substitute maintains the same surface mount termination and push-pull locking characteristics.
