Product Detailed Parameters

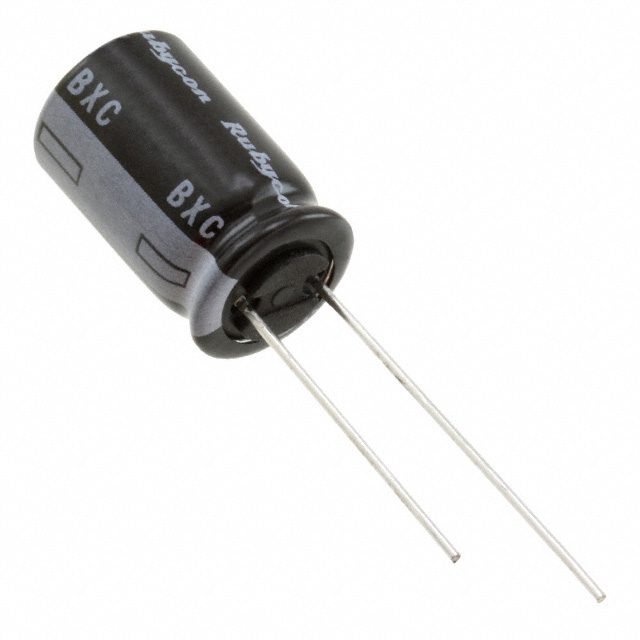

- Description：CAP ALUM 4.7UF 20% 350V RADIAL
- Series：BXC
- Mfr：Rubycon
- Package：Tape & Box (TB)
- Capacitance：4.7 µF
- Tolerance：±20%
- Voltage - Rated：350 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：8000 Hrs @ 105°C
- Operating Temperature：-25°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：30 mA @ 120 Hz
- Ripple Current @ High Frequency：150 mA @ 100 kHz
- Lead Spacing：0.197" (5.00mm)
- Size / Dimension：0.394" Dia (10.00mm)
- Height - Seated (Max)：0.571" (14.50mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Impedance：-
