Product Detailed Parameters

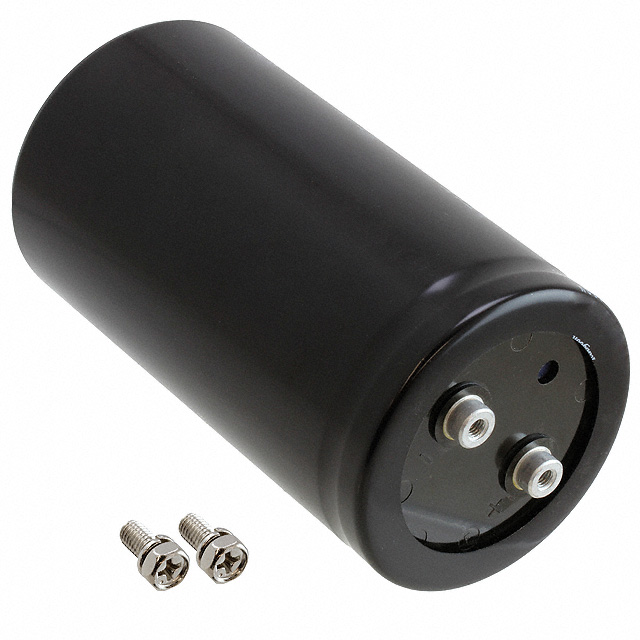

- Description：CAP ALUM 6800UF 20% 350V SCREW
- Series：LSG
- Mfr：Rubycon
- Package：Bulk
- Capacitance：6800 µF
- Tolerance：±20%
- Voltage - Rated：350 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：5000 Hrs @ 105°C
- Operating Temperature：-25°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：14.1 A @ 120 Hz
- Ripple Current @ High Frequency：19.74 A @ 10 kHz
- Lead Spacing：1.236" (31.40mm)
- Size / Dimension：3.032" Dia (77.00mm)
- Height - Seated (Max)：5.630" (143.00mm)
- Surface Mount Land Size：-
- Mounting Type：Chassis Mount
- Package / Case：Radial, Can - Screw Terminals
