Product Detailed Parameters

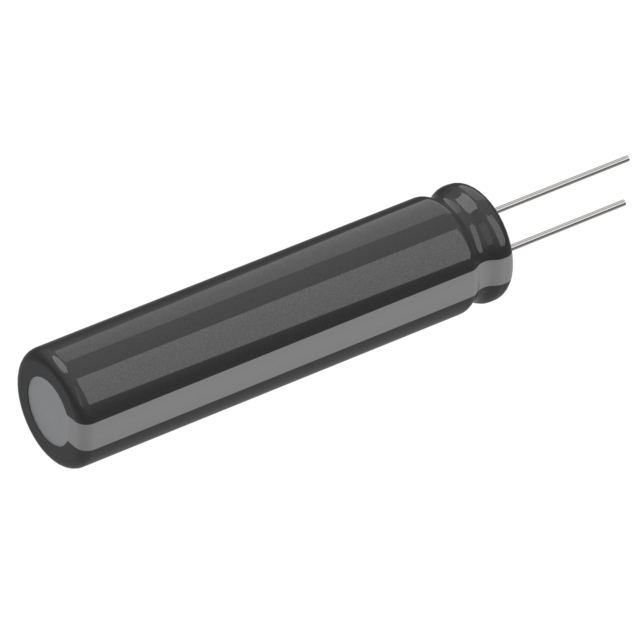

- Description：CAP ALUM 22UF 20% 350V RADIAL TH
- Series：TXW
- Mfr：Rubycon
- Package：Bulk
- Capacitance：22 µF
- Tolerance：±20%
- Voltage - Rated：350 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：12000 Hrs @ 105°C
- Operating Temperature：-40°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：250 mA @ 120 Hz
- Ripple Current @ High Frequency：375 mA @ 100 kHz
- Lead Spacing：0.138" (3.50mm)
- Size / Dimension：0.315" Dia (8.00mm)
- Height - Seated (Max)：1.280" (32.50mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Impedance：-
