3521-06-0200-99

Headers, Receptacles, Female Sockets Overview

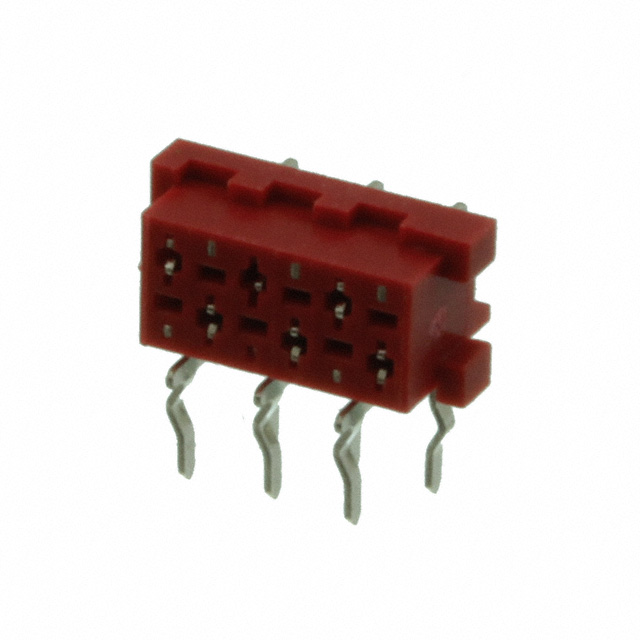

The CNC Tech 3521-06-0200-99 is a 6-position rectangular connector receptacle designed for through-hole, right-angle PCB mounting. It features a 0.100-inch (2.54mm) contact spacing and utilizes tin-plated contacts with fork-style terminals. The housing is constructed from red polyamide (PA9T), rated UL94 V-0, supporting a 500VAC voltage rating and 1A current capacity across a -40°C to 105°C operating range.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle through-hole mounting configuration for space-constrained board layouts
• Fork-style terminal design facilitates secure wire termination
• Polyamide insulation housing provides UL94 V-0 flame resistance

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic circuit interconnections
• Consumer device internal wiring harnesses
• Industrial control panel signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity against manufacturer specifications due to potential availability of aftermarket variants. Confirm that the specific ordering suffix matches the required pin count and termination style. Ensure compatibility with mating header connectors regarding pitch and housing geometry before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when right-angle orientation is required for vertical board stacking or limited clearance environments. The 2.54mm pitch ensures broad compatibility with standard ribbon cables and wire assemblies. Verify that the 1A current rating meets the application's electrical load requirements without excessive thermal rise.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the CNC Tech 3521 series of rectangular connectors, which are widely used in industrial and commercial electronics. The series offers various configurations including straight and right-angle options with different pin counts. These connectors are engineered for reliable performance in standard environmental conditions.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 6-position, 2.54mm pitch right-angle receptacles with fork terminals. Ensure replacement parts maintain identical housing dimensions and UL94 V-0 ratings to preserve mechanical fit and safety compliance.
