3521-14-0101-99

$1.12

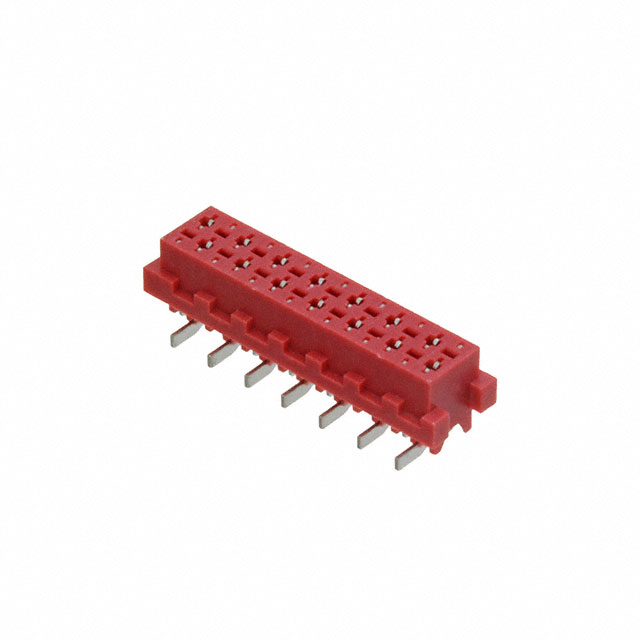

Description：CONN RCPT 14POS 0.1 TIN SMD
Series：-
Mfr：CNC Tech
Package：Tube

SKU:269a96d9768b Category: Headers, Receptacles, Female Sockets Brand: CNC Tech

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3521-14-0101-99 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists CNC Tech. Its product description is CONN RCPT 14POS 0.1 TIN SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 3521-14-0101-99

Description：CONN RCPT 14POS 0.1 TIN SMD
Series：-
Mfr：CNC Tech
Package：Tube
Connector Type：Receptacle
Contact Type：Forked
Style：Board to Board or Cable
Number of Positions：14
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：-
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Insulation Color：Red
Insulation Height：0.197" (5.00mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：500V

Headers, Receptacles, Female Sockets datasheet and documents for 3521-14-0101-99

3521-14-0101-99

Headers, Receptacles, Female Sockets Overview

The CNC Tech 3521-14-0101-99 is a rectangular connector socket designed for surface mount technology applications. It features a dual-row configuration with 14 positions and a standard 0.100-inch (2.54mm) contact spacing. The component utilizes tin-plated contacts to ensure reliable signal transmission. Constructed with a polyamide insulation material, it supports board-to-board or cable connections via a solder termination method.

Headers, Receptacles, Female Sockets Feature Summary

Surface mount design for automated PCB assembly
Dual-row layout accommodating 14 contact positions
Tin-plated contacts for corrosion resistance
Polyamide insulation housing for thermal stability

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnection systems
Cable-to-board wiring assemblies
General electronic circuit integration

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official CNC Tech documentation to confirm the exact termination style and plating specifications. Ensure compatibility with surface mount manufacturing processes and check for any recent product change notices that may affect mechanical dimensions or material composition prior to final procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, surface-mount female connector is required for dense circuit layouts. Confirm that the mating header matches the 0.100-inch pitch and dual-row configuration. Validate that the operating temperature range and voltage ratings align with the system's electrical requirements and environmental conditions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the CNC Tech 3521 series of rectangular connectors, which are engineered for high-density interconnect solutions. The series offers various pin counts and mounting styles to support diverse electronic design needs. As a socket connector, it pairs with male headers to establish secure electrical pathways in compact consumer and industrial devices.
