Edgeboard Connectors Overview

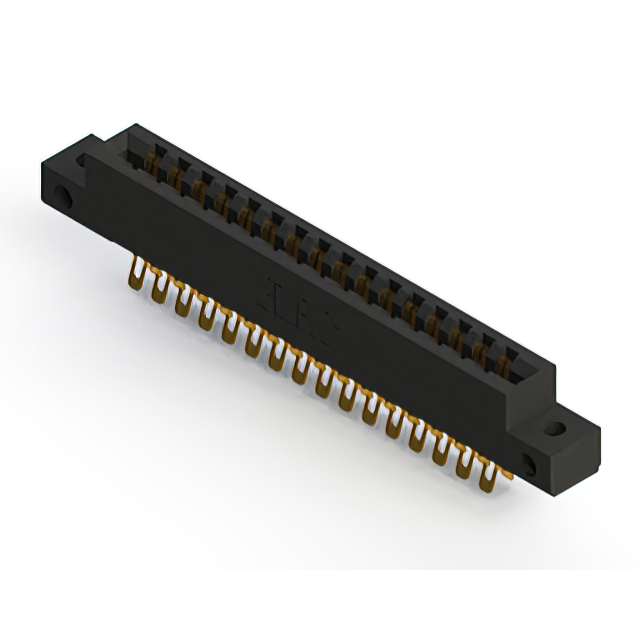

The EDAC Inc. 355-032-555-212 is a standard card edge connector featuring 32 positions arranged in a dual configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports a maximum board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, with an insulation resistance of 5 GOhms. Designed for vertical panel mounting, the housing is constructed from thermoplastic polyester. The component operates within a temperature range of -40°C to +105°C and employs solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Vertical panel mount design for stable structural integration
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Thermoplastic polyester housing providing thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal transmission
• Telecommunications equipment utilizing standard card edge interfaces
• Medical devices needing reliable high-temperature performance
• Consumer electronics with modular connectivity requirements

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact physical dimensions and termination style. Ensure compatibility with target PCB thickness and mounting constraints. Cross-reference RoHS compliance status through manufacturer datasheets prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 32-position interface with a 3.96 mm pitch is required. Confirm that the vertical panel mount orientation aligns with system mechanical layouts. Validate that the 5 A current rating and operating temperature range meet application environmental demands.

Edgeboard Connectors Part Context

This component belongs to the EDAC 355 series of standard card edge connectors. The series offers various position counts and row configurations designed for general-purpose electronic interconnections. The 355 series emphasizes durability and consistent electrical performance across diverse industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match critical parameters such as pitch, plating thickness, or mounting geometry.
