356-007-521-107

Edgeboard Connectors Overview

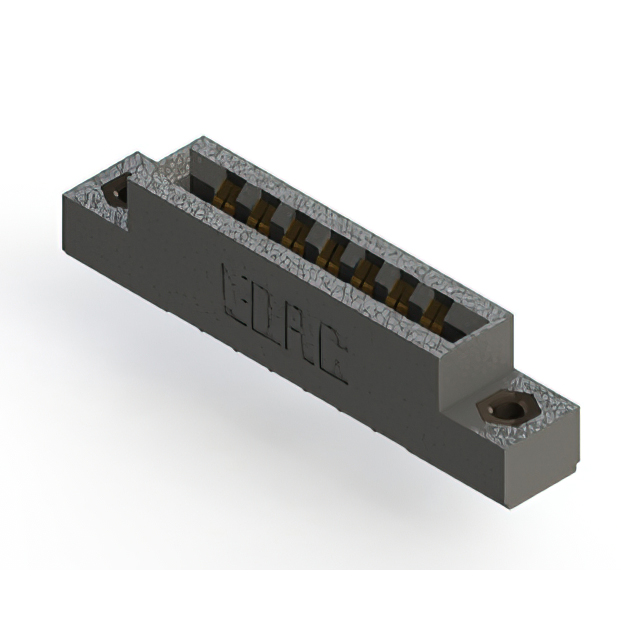

The EDAC Inc. 356-007-521-107 is a standard card edge connector from the 356 series, designed for vertical panel mounting. It features a dual female configuration with 14 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, terminated via solder pins. The insulator body is made of thermoplastic polyester, providing an insulation resistance of 5 gigaohms.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board retention
• Low profile insulator body construction
• Gold-plated contacts for reliable signal transmission
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Automotive electronics
• Medical devices

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination type against the official datasheet before procurement. Confirm that the target PCB thickness matches the 0.062-inch specification to ensure proper mechanical fit. Check for any RoHS compliance requirements relevant to the project specifications.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-sided card edge interface is required. Ensure the application environment does not exceed the maximum operating temperature limits defined in the technical documentation. Verify that the 3.96 mm pitch aligns with the design constraints of the host system.

Edgeboard Connectors Part Context

This part belongs to the EDAC 356 series, which specializes in standard card edge connectors with a 3.96 mm centerline spacing. The series offers various position counts and heights, utilizing black thermoplastic polyester bodies. It is engineered for robust performance in general-purpose electronic assemblies requiring reliable vertical interconnects.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference options based on identical electrical and mechanical parameters.
