356-008-400-112

Edgeboard Connectors Overview

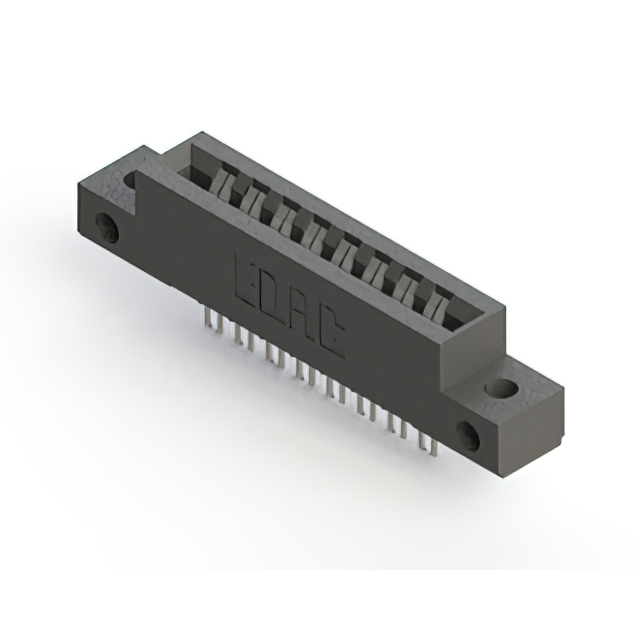

The EDAC Inc. part number 356-008-400-112 is a standard card edge connector from the 356 series. It features a dual female configuration with 16 positions, corresponding to an 8-position per side layout. The connector utilizes a 0.156-inch (3.96 mm) centerline pitch and is designed for panel mount installation at a vertical orientation. The housing is constructed from black thermoplastic polyester, providing structural integrity and insulation. Electrical specifications include a current rating of 5 A and an insulation resistance of 5 Gohms. The contacts are made of copper alloy with gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Vertical panel mount design for fixed installation applications
• Gold-plated copper alloy contacts for corrosion resistance
• Black thermoplastic polyester housing for durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronic modules
• Medical device internal circuitry
• Research and scientific instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin count, plating thickness, and mounting style. Ensure compatibility with the target PCB card thickness and panel cutout dimensions. Confirm RoHS compliance status if required by project specifications. Cross-reference the datasheet for precise mechanical tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mounted card edge interface is required. The 3.96 mm pitch suits applications needing wider spacing between signals. Verify that the 5 A current rating meets the electrical load requirements. Consider the black housing color for visual identification or light-blocking needs in dense assemblies. Ensure the dual female configuration aligns with the mating card edge guide design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 356 series, characterized by black housings and a 3.96 mm pitch. It is distinct from the green-housed 306 and 316 series connectors which share similar spacing but differ in color and potentially mechanical details. The 356 series is designed for general-purpose industrial and commercial applications where vertical panel mounting provides space efficiency.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the EDAC lineup include other 356 series variants with different position counts, such as 356-006-400-112 or 356-010-400-112, provided the mechanical footprint allows. Verify that any alternative maintains the same 3.96 mm pitch and vertical mounting angle to ensure board compatibility.
