357-009-501-108

Edgeboard Connectors Overview

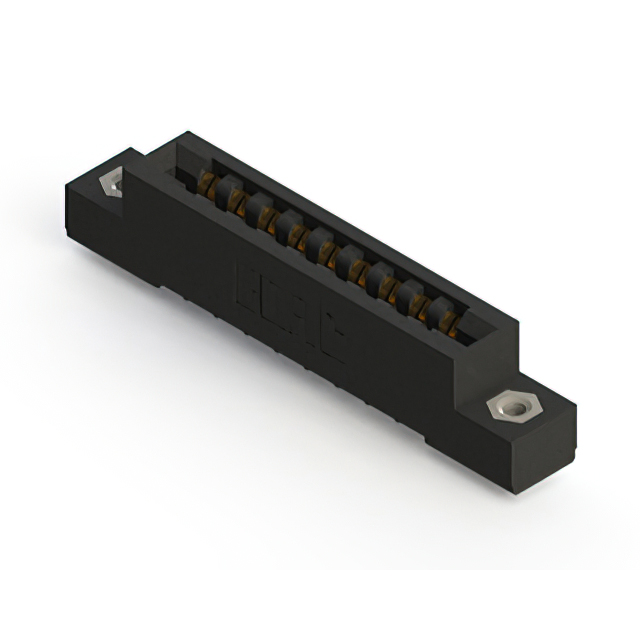

The EDAC Inc. 357-009-501-108 is a standard card edge connector from the 357 series, designed for dual-edge board insertion. It features 18 positions with a 3.96 mm (0.156 inch) pitch. The connector supports a PCB thickness range of 1.37 mm to 1.78 mm (0.054 to 0.070 inches). Contacts are gold-plated copper alloy, and the housing is black thermoplastic polyester. It utilizes through-hole solder eyelet termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Vertical mounting style facilitates direct panel or chassis integration
• Solder eyelet termination provides robust mechanical and electrical connection

Edgeboard Connectors Applications

• Medical interconnect systems requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control panels utilizing card-based architectures
• Automotive electronics modules needing high reliability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB thickness specifications before procurement. Confirm RoHS compliance status and any recent product change notifications that may affect material composition or dimensions. Cross-reference the Mouser or DigiKey part numbers for accurate sourcing channels.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with 18 positions is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the application environment stays within the -40°C to +105°C operational range. Consider the vertical mounting orientation and through-hole soldering requirements during PCB layout design. Ensure the housing material meets any necessary flammability ratings for the end product.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 357 series, which offers a comprehensive range of card edge solutions. The series is engineered for durability in demanding sectors such as medical and agricultural technologies. The 357-009-501-108 variant specifically addresses applications needing dual-edge connectivity with gold-plated contacts for enhanced performance and longevity in critical electronic assemblies.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 357 series connectors with matching 18-position dual-edge configurations. Verify identical 3.96 mm pitch and compatible PCB thickness ranges. Ensure equivalent gold plating and vertical mounting styles. Check for cross-referenced part numbers from authorized distributors offering similar form-factor alternatives.
