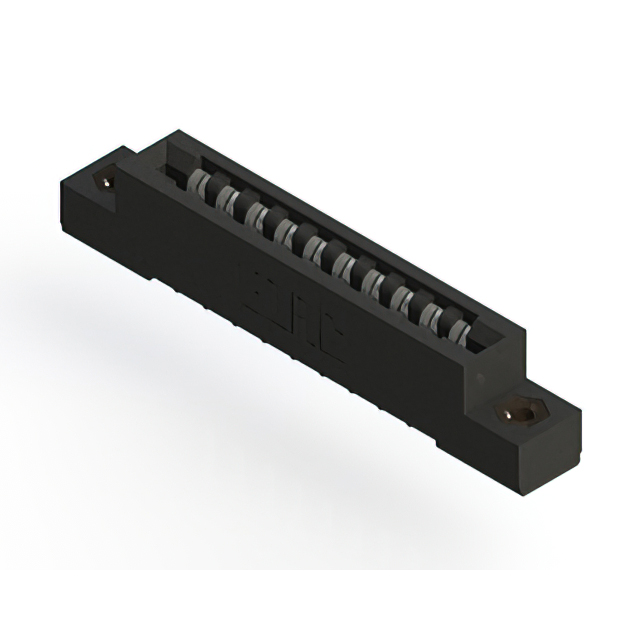

357-010-421-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 357-010-421-108
- Description：CONN EDGE DUAL FMALE 20POS 0.156
- Series：357
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 357-010-421-108
Edgeboard Connectors Overview
The EDAC Inc. 357-010-421-108 is a standard card edge connector from the 357 series, designed for vertical PCB mounting. It features 10 positions with a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. This dual-edge female connector utilizes solder termination for secure attachment to the circuit board.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for robust card insertion
- Vertical mounting orientation with solder termination
- Gold-plated contacts for enhanced conductivity and corrosion resistance
Edgeboard Connectors Applications
- Industrial control systems requiring durable interconnects
- Medical equipment needing reliable signal pathways
- Agricultural technology hardware exposed to harsh environments
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's latest datasheet to ensure compatibility with required flange options and contact plating. Confirm that the 10-position count and 3.96 mm pitch align with the target PCB design specifications before procurement.
Edgeboard Connectors Selection Notes
Select this component when a vertical, dual-edge connector with gold contacts is required for 10-position applications. Ensure the mating card thickness matches the 1.57 mm specification and verify that the solder termination method suits the assembly process.
Edgeboard Connectors Part Context
Part of the EDAC 357 series, which offers various configurations including different position counts and flange styles. This specific model provides a standardized solution for vertical card edge connections within industrial and medical interconnect families.
Edgeboard Connectors Replacement Considerations
Compatible substitutes include other EDAC 357 series variants with matching 10-position counts and 3.96 mm pitch, such as 357-010-527-103, provided flange and termination requirements are met.
Edgeboard Connectors FAQ
What is the contact plating material?
The contacts are gold-plated copper alloy.
Does this connector have flanges?
Yes, it features flush-mount type flanges with threaded inserts.
