357-012-545-108

Edgeboard Connectors Overview

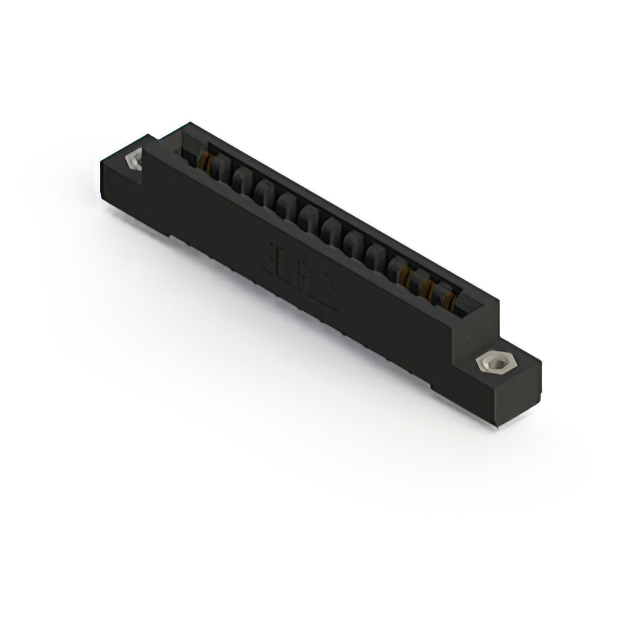

The EDAC Inc. model 357-012-545-108 is a standard card edge connector from the 357 series, designed for single-row applications with twelve positions. It features a pitch of 3.96 mm and accommodates board thicknesses ranging from 1.37 mm to 1.78 mm. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row female configuration with gold-plated contacts for enhanced conductivity
• Vertical mounting style compatible with panel or through-hole installation
• Robust thermoplastic polyester housing for stable mechanical performance
• Wide operational temperature tolerance suitable for demanding environments

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology systems exposed to harsh conditions
• Industrial control panels utilizing standard card edge interfaces
• Electronic assemblies needing vertical single-row connectivity

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status directly with the manufacturer before procurement, as specific regulatory details may vary by production batch. Confirm that the required board thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper contact engagement. Check regional availability restrictions, as distribution channels may limit sales in certain areas. Ensure that the application environment remains within the -40°C to +105°C operating limits to maintain connector integrity and electrical performance over time.

Edgeboard Connectors Selection Notes

Select this component when a single-row, twelve-position interface is required with a 3.96 mm pitch. It is suitable for designs necessitating vertical orientation and gold-plated contacts for corrosion resistance. Consider the thermoplastic polyester housing material for general-purpose insulation needs. Verify that the target PCB thickness aligns with the supported range to guarantee secure mating. This connector is appropriate for applications where moderate current ratings and wide temperature operation are essential specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 357 series, which offers a comprehensive range of card edge connectors. The series includes various position counts and row configurations to support diverse electronic design requirements. EDAC provides these components for industries such as medical and agricultural technology, emphasizing reliability and durability in challenging environments. The 357 series maintains consistent dimensional standards across its product line for interchangeability.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include models with identical pitch and position counts but different row configurations or flange options. Verify that any replacement maintains the 3.96 mm pitch and supports the required board thickness. Ensure that the alternative part number retains the gold-plated contact specification and similar thermal ratings for equivalent performance.
