357-014-427-101

Edgeboard Connectors Overview

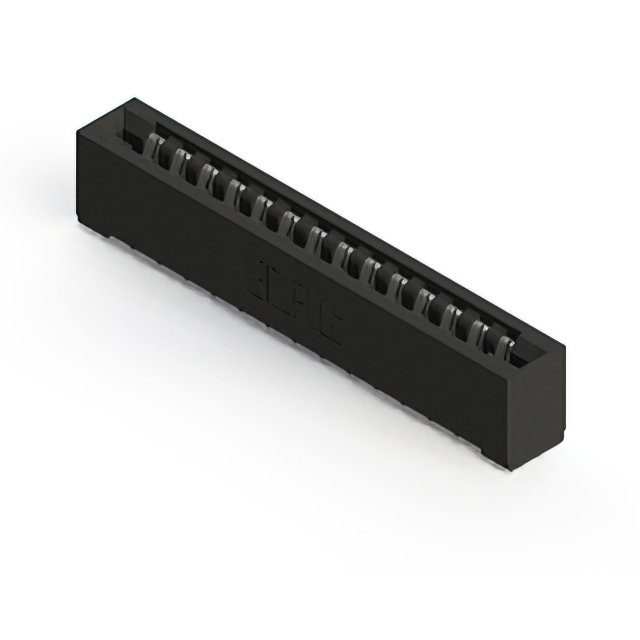

The EDAC Inc. 357-014-427-101 is a standard single-row card edge connector designed for vertical panel mounting applications. It features 14 positions with a 3.96 mm (0.156 inch) pitch, accommodating PCBs with a thickness of 1.57 mm. The contacts are constructed from copper alloy and finished with tin plating to ensure reliable signal transmission. This component utilizes a solder termination method for secure board attachment and includes locking features for stability. The insulator is made of black thermoplastic material, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Single row configuration with 14 contact positions
• Solder termination for robust PCB connection
• Built-in locking mechanism for connector stability

Edgeboard Connectors Applications

• Industrial control systems requiring stable interconnects
• Medical equipment interface modules
• Agricultural technology sensor connections
• General-purpose electronic board-to-board linking

Edgeboard Connectors Procurement Notes

Verify the specific contact finish requirement, as datasheets may list variations between tin and gold plating for this series. Confirm that the target application supports the 1.57 mm board thickness specification. Ensure the vertical mounting orientation aligns with the mechanical layout constraints of the final assembly before placing orders.

Edgeboard Connectors Selection Notes

Choose this model when a single-row, vertically mounted solution is required for 14-position interfaces. The 3.96 mm pitch is suitable for standard industrial PCB layouts. Consider the tin-plated contacts for cost-effective applications where high corrosion resistance is not the primary driver compared to gold-plated alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series, which offers a range of standard card edge connectors. The series is known for supporting various position counts and termination styles. The 357-014-427-101 specifically addresses the need for a compact, single-row connector with locking capabilities, fitting into the broader portfolio of interconnect solutions for rugged environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pitch and position counts but different termination or plating options, such as 357-014-442-202 if gold plating is preferred. Verify mechanical compatibility and electrical ratings before swapping components.
