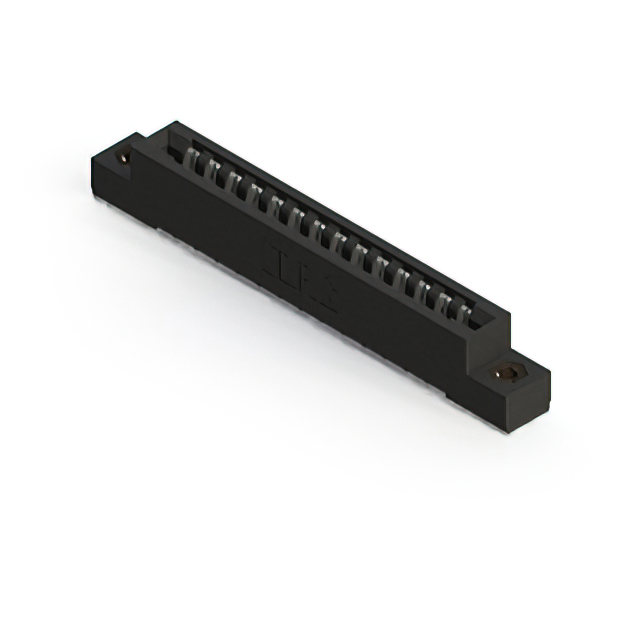

357-014-445-107

$9.63

Description：CONN EDGE SGL FML 14POS 0.156
Series：357
Mfr：EDAC Inc.
Package：Bulk

SKU:5e16eda01419 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

357-014-445-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FML 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 357-014-445-107

Description：CONN EDGE SGL FML 14POS 0.156
Series：357
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：14
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Semi Bellows
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 357-014-445-107

357-014-445-107

Edgeboard Connectors Overview

The EDAC Inc. 357-014-445-107 is a standard card edge connector from the 357 series, designed for vertical panel mount applications. It features 14 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The contacts are tin-plated copper alloy, rated for 5 A current at an insulation resistance of 5 GOhms. Operating within a temperature range of -40°C to +105°C, this single-row female connector utilizes wire wrap termination and a thermoplastic polyester housing.

Edgeboard Connectors Feature Summary

Vertical panel mount configuration for secure structural integration
Wire wrap termination method for reliable circuit interconnection
Single row contact arrangement optimized for standard card edge profiles

Edgeboard Connectors Applications

Industrial control system backplanes
Medical device internal module connections
Agricultural technology equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm plating type and termination style. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference manufacturer part numbers directly to avoid substitution errors in critical assemblies.

Edgeboard Connectors Selection Notes

Select this component when vertical panel mounting and wire wrap termination are required. Confirm that the 14-position count and 3.96 mm pitch align with the design specifications. Validate environmental ratings against operational temperature extremes and electrical load requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 357 series, which provides standard card edge solutions for various industries. The series offers multiple position counts and termination options to support diverse electronic interconnection needs across commercial and industrial sectors.
