Edgeboard Connectors Overview

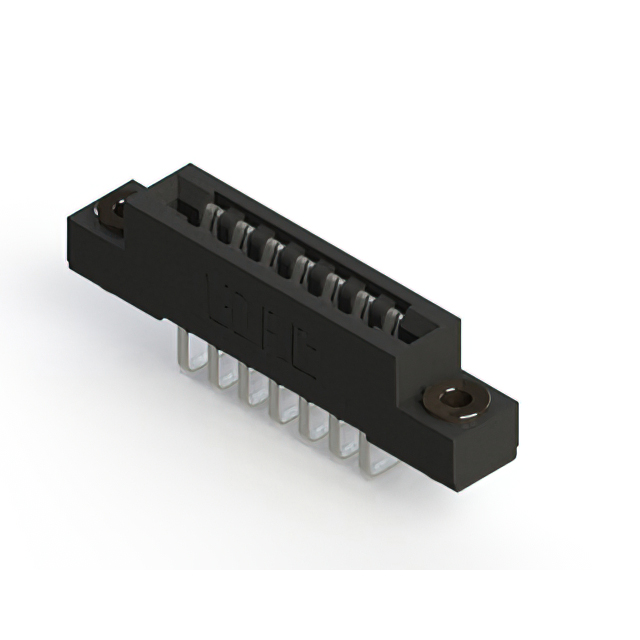

The EDAC Inc. 357-014-459-203 is a standard card edge connector featuring 14 positions with a 3.96 mm pitch. It supports dual rows and utilizes gold-plated contacts for reliable signal transmission. Designed for vertical installation, the component accommodates a board thickness of 1.57 mm. The housing is constructed from thermoplastic polyester, providing structural integrity in various environments. This connector is part of the 357 series, engineered for robust performance in electronic assemblies requiring secure card edge interfacing.

Edgeboard Connectors Feature Summary

• Dual row configuration for increased connection density
• Gold-plated contacts ensure corrosion resistance and conductivity
• Vertical mounting style facilitates direct PCB integration

Edgeboard Connectors Applications

• Electronic circuit board interconnections
• Industrial control system modules
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm contact plating type and flange features. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market. Confirm availability through authorized distributors as supply chains may vary.

Edgeboard Connectors Selection Notes

Select this model when a dual-row card edge connector with a 3.96 mm pitch is required. Verify that the application environment stays within the specified temperature range. Ensure the mating card edge thickness aligns with the 1.57 mm specification. Consider the vertical orientation for panel or board-to-board connections where space constraints dictate the mounting angle.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and configurations to suit different design needs. The 357-014-459-203 specifically addresses applications requiring 14 positions in a dual-row format. It represents a standardized solution for reliable electrical connections in modular electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 14-position count, 3.96 mm pitch, and dual-row layout. Verify identical mounting angles and board thickness tolerances. Check for equivalent contact materials and plating specifications to maintain performance standards.
