357-015-453-107

Edgeboard Connectors Overview

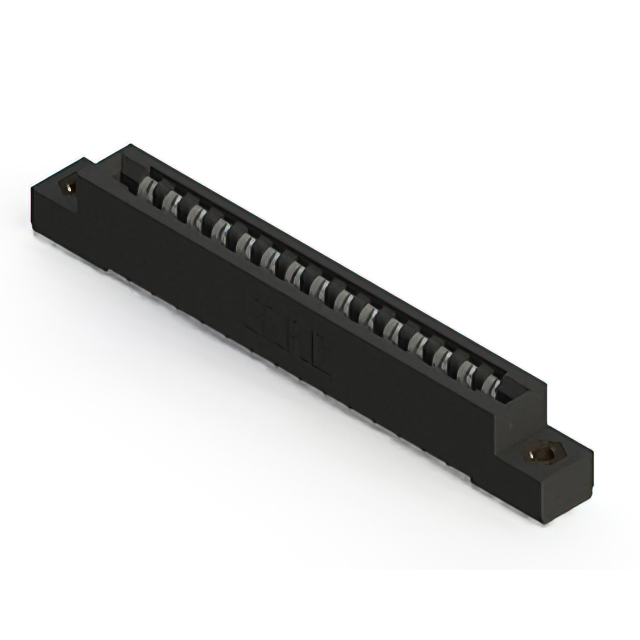

The EDAC Inc. 357-015-453-107 is a standard card edge connector from the 357 series, designed for vertical panel mount applications. It features a dual female configuration with 30 positions and a pitch of 0.156 inches (3.96 mm). The connector supports a board thickness of 1.57 mm and utilizes gold-plated contacts to ensure reliable signal transmission. Constructed with a thermoplastic polyester housing, it provides robust insulation and durability for industrial environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Vertical panel mount installation style for space-efficient integration
• Gold-plated contacts to maintain low resistance and corrosion resistance
• Thermoplastic polyester housing for high dielectric strength

Edgeboard Connectors Applications

• Industrial control systems requiring reliable I/O connections
• Medical equipment interconnect solutions
• Agricultural technology hardware interfaces
• Communication infrastructure modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 357 series ordering guide to confirm termination type and flange options. Ensure compatibility with the target PCB stack-up and verify that the selected variant meets the required environmental ratings for the intended deployment zone. Cross-reference the Mouser or DigiKey part numbers for accurate sourcing channels.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required for 30-position signaling. Confirm that the 0.156-inch pitch aligns with the design rules of the host circuit board. Evaluate the need for gold plating versus tin plating based on the expected mating cycles and environmental exposure conditions during the product lifecycle.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 357 series, which offers a comprehensive range of card edge connectors characterized by a 0.156-inch pitch and 0.200-inch row spacing. The series includes various configurations for different board thicknesses and termination styles, serving as a standardized solution for modular electronic assemblies across multiple industries.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants such as 357-015-453-108 or 357-015-453-101, depending on the specific termination and flange requirements. Verify dimensional compatibility before substitution.
