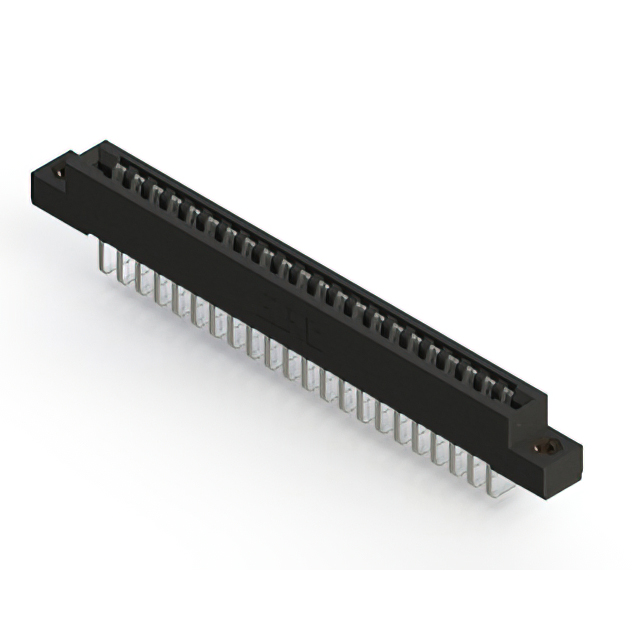

357-022-458-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FML 22POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 357-022-458-107
- Description：CONN EDGE SGL FML 22POS 0.156
- Series：357
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：22
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 357-022-458-107
Edgeboard Connectors Overview
The EDAC Inc. 357-022-458-107 is a standard card edge connector from the 357 series, designed for vertical panel mount applications. It features 22 positions with a 3.96 mm pitch and supports PCB thicknesses of 1.37 mm to 1.78 mm. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic polyester housing. It is classified as a single-sided, female contact type suitable for wire wrap termination.
Edgeboard Connectors Feature Summary
- Vertical panel mount design for secure installation
- Gold-plated contacts ensure reliable signal transmission
- Compatible with specified single-sided card edge boards
Edgeboard Connectors Applications
- Industrial control systems
- Medical interconnect solutions
- Agricultural technology equipment
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm flange configuration and plating details. Ensure compatibility with target PCB thickness and mating card specifications before procurement. Confirm RoHS compliance status through current manufacturer datasheets.
Edgeboard Connectors Selection Notes
Select this component for applications requiring vertical orientation and robust mechanical stability. The 3.96 mm pitch accommodates standard board layouts. Verify that the single-sided contact requirement aligns with the circuit board design. Consider the operating temperature range of -40°C to +105°C for environmental suitability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and mounting options. The 357-022 variant specifically provides 22 positions, balancing density and spacing for moderate I/O requirements in compact electronic assemblies.
Edgeboard Connectors FAQ
What is the maximum operating temperature for this connector?
The connector operates within a temperature range of -40°C to +105°C.
Does this connector support double-sided cards?
No, this specific model is designed for single-sided card edge connections.
