357-030-559-202

Edgeboard Connectors Overview

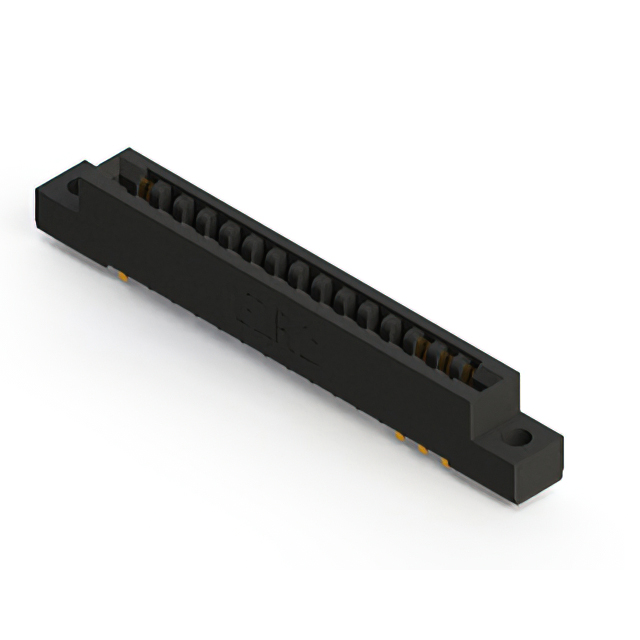

The EDAC Inc. 357-030-559-202 is a standard card edge connector from the 357 series, designed for right-angle panel mounting. It features 30 positions arranged in a dual row with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic polyester housing. It supports board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Right-angle panel mount configuration for secure mechanical installation
• Dual-edge female contact design for non-specified card types
• Gold-plated copper alloy contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology applications in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 307/357 Ordering Guide to ensure exact dimensional and material compliance. Confirm RoHS status and lead times directly with authorized distributors, as availability may vary by region. Ensure the receiving facility has appropriate handling procedures for sensitive electronic components.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-row connection is required for boards up to 1.78 mm thick. The 3.96 mm pitch suits high-density layouts where vertical clearance allows for angled mounting. Verify that the mating card edge geometry aligns with the dual-edge female contact specification for proper engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and mounting styles, including vertical and right-angle options. The 357 series is characterized by its durable thermoplastic polyester construction and consistent 3.96 mm pitch across multiple configurations.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 307/357 Ordering Guide for direct substitutes with identical pin counts and mounting angles. Cross-reference dimensions carefully, as pitch and flange specifications must match exactly for mechanical compatibility.
