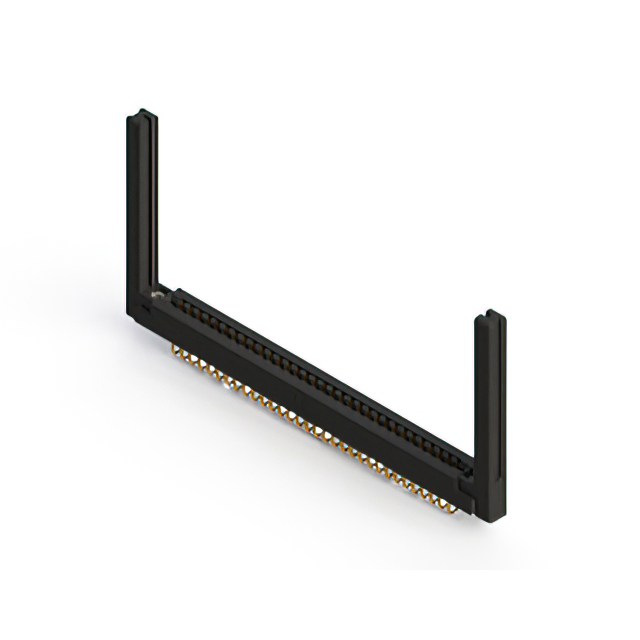

357-064-558-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 64POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 357-064-558-258
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：357
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole, Right Angle
- Termination：Solder, Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 357-064-558-258
Edgeboard Connectors Overview
The EDAC Inc. 357-064-558-258 is a standard card edge connector featuring 64 positions arranged in a dual female configuration. It utilizes a 3.96 mm pitch and supports a board thickness of 1.57 mm (0.156 inches). The contacts are gold-plated copper alloy, ensuring reliable signal transmission. This component belongs to the 357 series and is designed for vertical mounting applications.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure card edge mating
- Gold-plated copper alloy contacts for corrosion resistance
- Vertical mounting style for panel or board integration
Edgeboard Connectors Applications
- Medical interconnect solutions
- Agricultural technology equipment
- Industrial control systems
Edgeboard Connectors Procurement Notes
Verify the manufacturer part number against official EDAC documentation to confirm compatibility with specific board thicknesses and mounting requirements. Ensure that the gold plating specifications meet the environmental conditions of the intended application. Cross-reference the RoHS compliance status with current regulatory standards before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this connector when a 64-position interface with a 3.96 mm pitch is required. The vertical orientation suits space-constrained designs where board-to-board or backplane connections are necessary. Consider the dual female layout for mating with male card edges. Verify that the operating temperature range aligns with the system's thermal profile.
Edgeboard Connectors Part Context
This component is part of the EDAC 357 series, which offers a comprehensive range of card edge connectors. The series is engineered for durability in demanding environments, including medical and agricultural sectors. The 357-064-558-258 specifically addresses high-density connection needs with its 64-position capacity.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for compatible alternatives within the 357 series. Ensure that any replacement maintains the same 64-position count, 3.96 mm pitch, and vertical mounting style to preserve mechanical and electrical integrity.
