357-088-422-268

Edgeboard Connectors Overview

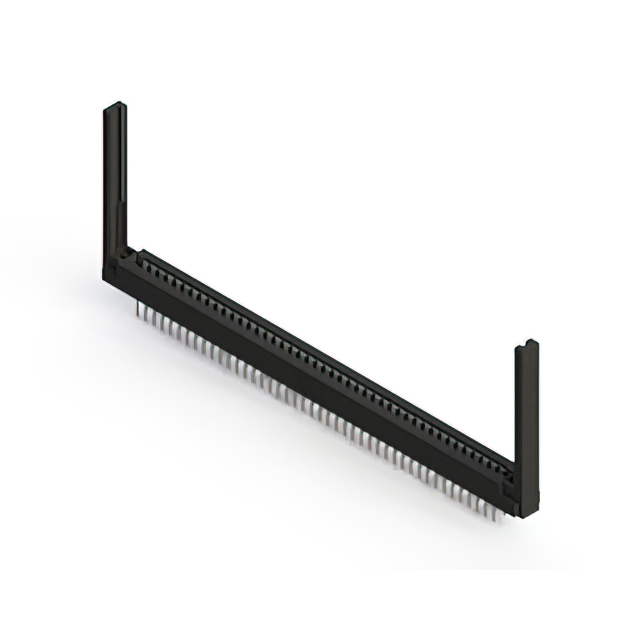

The EDAC Inc. 357-088-422-268 is a standard card edge connector from the 357 series, designed for dual female contact configurations. It features 88 positions with a pitch of 3.96 mm (0.156 inches). The connector utilizes tin-plated contacts and is housed in black thermoplastic polyester material. It supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. The unit provides an insulation resistance of 5 GOhms and has a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge insertion
• Tin-plated contacts ensure reliable electrical conductivity
• Black thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required contact plating and housing material match the application requirements. Check for any regional shipping restrictions or availability limitations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 88 positions is required. Confirm that the PCB thickness aligns with the specified 1.57 mm tolerance. Evaluate the operating temperature range and current rating against the system's electrical demands to ensure long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and mounting styles, utilizing a consistent 3.96 mm pitch. These connectors are engineered for robust performance in demanding environments, supporting both vertical and panel mount configurations across different product variants.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 357 series. Ensure any replacement maintains identical pin count, pitch, and contact configuration.
